Garnish - Fender - Rear - LH (Remove and Replace)

Correction code 12201402 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

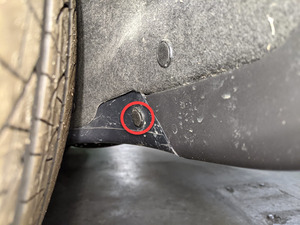

  1. Remove the clip that attaches the LH rear fender garnish to the mid aero shield.

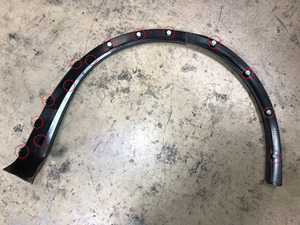

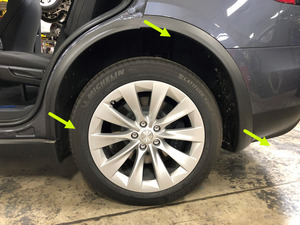

  2. Release the clips (x7) and tabs (x7) that attach the LH rear fender garnish to the vehicle, and then remove the garnish from the vehicle.

Install

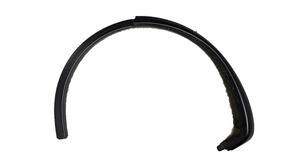

  1. Position the LH rear fender garnish onto the vehicle, and then secure the clips (x7) and tabs (x7) that attach the garnish to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

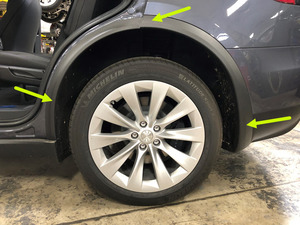

    Verify the garnish is seated flush along the rear fascia.
  2. Install the clip that attaches the LH rear fender garnish to the mid aero shield.
