Shroud - Air Extractor - Rear - Inner - LH (Remove and Replace)

Correction code 10014712 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

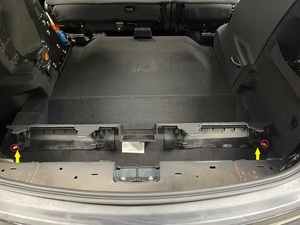

  2. Release the push clips (x4) and clips (x2) that attach the rear wall load support.

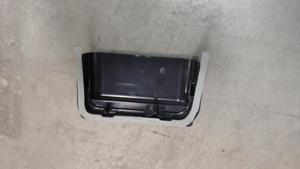

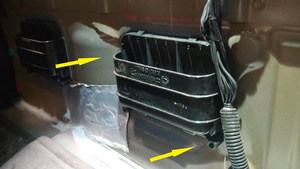

  3. Pull the LH inner rear air extractor shroud from the body, and then remove the shroud from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Shroud is held with double sided tape.

Install

  1. Remove the adhesive backing from the LH inner rear air extractor shroud, line up the shroud to the air extractor, and then press the shroud into the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press firmly on the shroud.

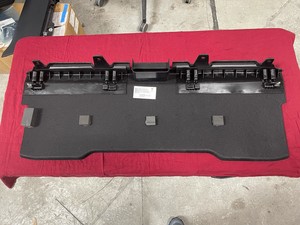

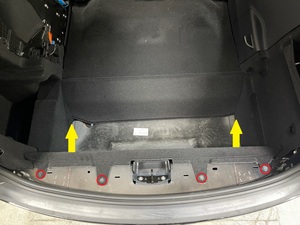

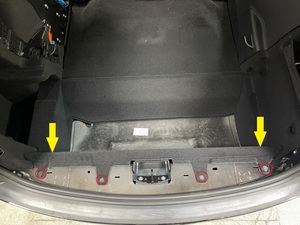

  2. Position the rear wall load floor support into the vehicle, and then install the clips (x6) that attach the support to the vehicle.
  3. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
