Panel - Service - Center Console (Remove and Replace)

Correction code 15190062 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the RH front door and lower the RH front window.
  2. Move the front passenger seat rearward.
  3. Fully retract the center console lid, cupholder, and sliding tray into the locked position.

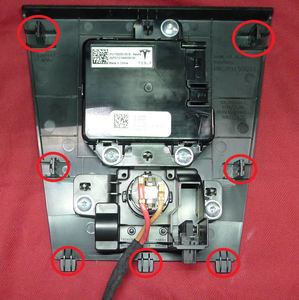

  4. Release the clips (x4) that attach the center console service panel to the center console assembly, and then pull the panel upward to access the electrical harness.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a 90 degree plastic trim tool.
  5. Disconnect the electrical connectors (x3), and then release the clip that attaches the electrical connector to the center console service panel.

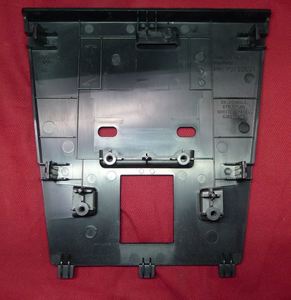

  6. Remove the screws (x3) that attach the front USB hub to the center console service panel assembly, and then remove the USB hub from the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket

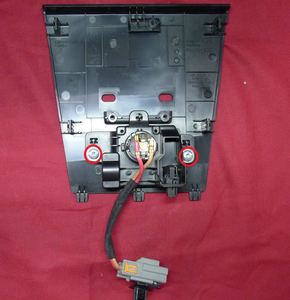

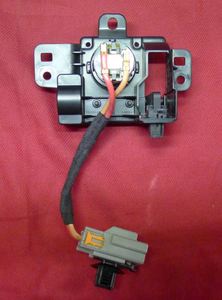

  7. Remove the screws (x2) that attach the 12V power outlet assembly to the center console service panel, and then remove the power outlet from the assembly.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Install

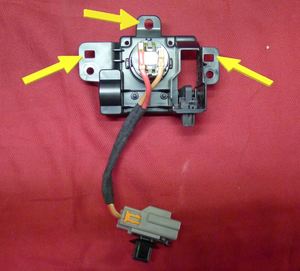

  1. Position the 12V power outlet assembly onto the center console service panel, and then install the screws (x2) that attach the power outlet to the service panel.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket

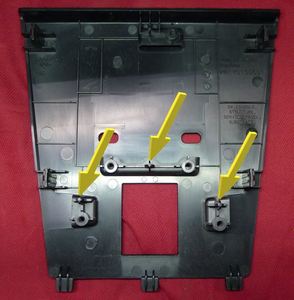

  2. Position the front USB hub to the center console service panel assembly, and then install the screws (x3) that attach the USB hub to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Position the center console service panel into the center console assembly, connect the electrical connectors (x3), and then secure the clip that attaches the electrical connector to the service panel.
  4. Secure the clips (x4) that attach the center console service panel assembly to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the connector X1131 and X881 is positioned to the right of the main harness for USB hub clearance.
  5. Close the center console.
  6. Move the front passenger seat to the original position.
  7. Raise the RH front window and close the RH front door.
