Riser - Outer - Driver Seat (Remove and Replace)

Correction code 13012002 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and lower the front windows.
  2. Remove the driver seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove and Install).

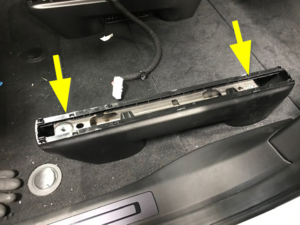

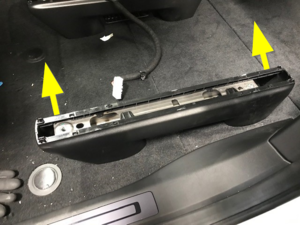

  3. Remove and discard the bolts (x2) that attach the driver seat outer riser assembly to the vehicle, and then remove the assembly from the vehicle.
    33 Nm (24.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket

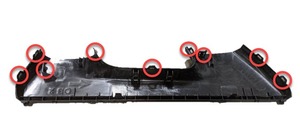

  4. Release the clips (x9) that attach the driver seat outer riser inboard cover to the riser, and then remove the cover from the riser. Repeat this step for the outboard cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the inboard cover first, and then the outboard cover.

Install

  1. Position the driver seat outer riser outboard cover onto the riser, and then secure the clips (x9) that attach the cover to the riser. Repeat this step for the inboard cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install the outboard cover first, and then the inboard cover.

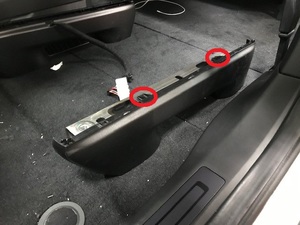

  2. Position the driver seat outer riser assembly into the vehicle, and then install new bolts (x2) that attach the assembly to the vehicle.
    33 Nm (24.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
  3. Install the driver seat. See Seat Assembly - 1st Row - LH (Remove and Install).
  4. Raise the front windows and close the LH front door.
