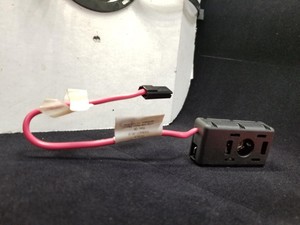

Noise Filter - LV - Antenna (Remove and Replace)

Correction code 21300502 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
  2. Remove the liftgate speaker trim. See Grille - Speaker - Liftgate (Remove and Replace).
  3. Remove the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace)

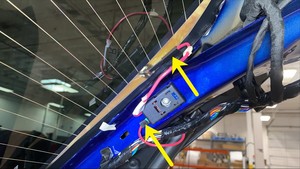

  4. Disconnect the antenna LV noise filter electrical connectors (x2).

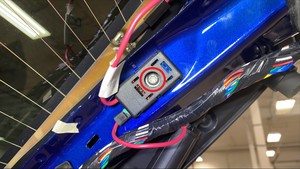

  5. Release the screw that attaches the antenna LV noise filter to the liftgate, and then remove the noise filter from the liftgate.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The screw is self contained to the filter.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

  1. Position the antenna LV noise filter into the liftgate, and then install the screw that attaches the noise filter to the liftgate.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The screw is self contained to the filter.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  2. Connect the antenna LV noise filter electrical connectors (x2).
  3. Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace)
  4. Install the liftgate speaker trim. See Grille - Speaker - Liftgate (Remove and Replace).
  5. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
