Closeout Panel - Door - Front - LH (Remove and Replace)

Correction code 11701032 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH front door trim decor. See .
  2. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).

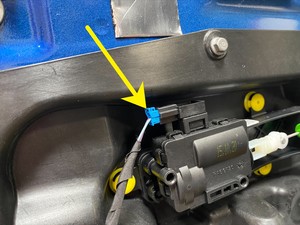

  3. Disconnect the release motor electrical connector.

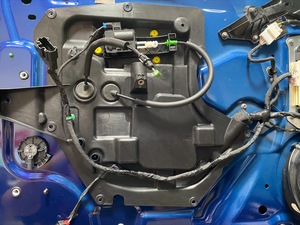

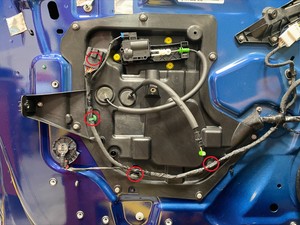

  4. Release the clips (x4) that attach the LH front door harness to the LH front door closeout panel.

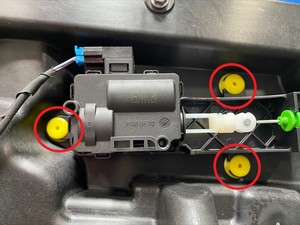

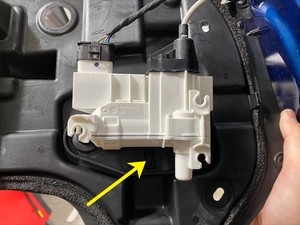

  5. Release the clips that attach the LH front door release motor to the LH front door closeout panel, release the release cable, and then remove the release motor from the closeout panel.

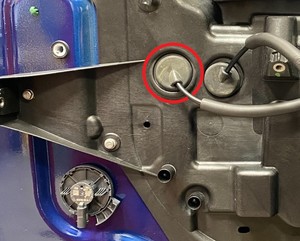

  6. Push the LH front door release motor cable grommet into the LH front door closeout panel.

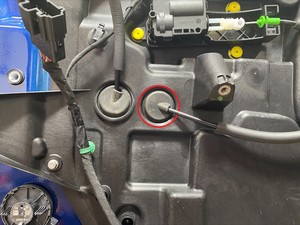

  7. Push the LH front door interior door handle release cable grommet into the LH front door closeout panel.

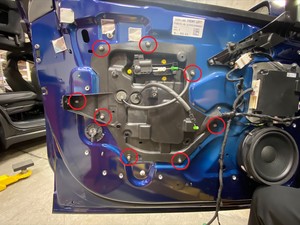

  8. Remove the bolts (x8) that attach the LH front door closeout panel to the door assembly.
    1.8 Nm (1.3 lbs-ft)
    Use of the following tool(s) is recommended:
    • 8 mm socket

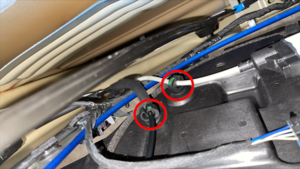

  9. Release the clips (x2) on the backside of the LH front door closeout panel.

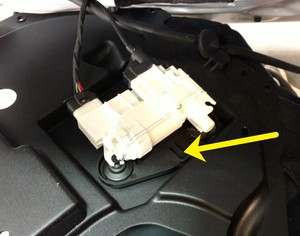

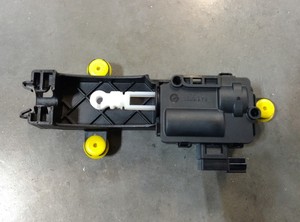

  10. Release the tab, and then remove the cinch motor from LH front door closeout panel.

Install

  1. Slide the cinch motor onto the LH front door closeout panel, and then secure the tab to lock it into position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure there is an audible click when the cinch motor is locked into position.
  2. Feed the interior door handle release cable through the closeout panel, and then install the grommet.
  3. Feed the release motor cable through the closeout panel, and then install the grommet.
  4. Install the latch cable clips (x2) on the backside of the LH front door closeout panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure tabs on the rear and bottom edges are seated.
  5. Position the LH front door closeout panel onto the LH front door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure tabs on the rear and bottom edges are seated.
  6. Remove the bolts (x8) that attach the LH front door closeout panel to the door assembly.
    1.8 Nm (1.3 lbs-ft)
    Use of the following tool(s) is recommended:
    • 8 mm socket
  7. Install the clips (x4) that attach the LH front door harness to the LH front door closeout panel.

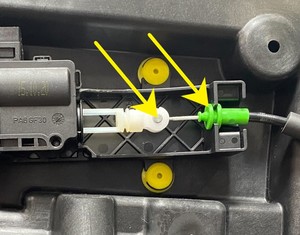

  8. Position the LH front door release motor into the LH front door closeout panel, install the release cable to the release motor, and then install the clips (x3) that attach the release motor to the closeout panel.
  9. Connect the release motor electrical connector.
  10. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
  11. Install the LH front door trim decor. See .
