Switch - Liftgate - Interior (Remove and Replace)
Correction code
11352802
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the LH front window.
- Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
-

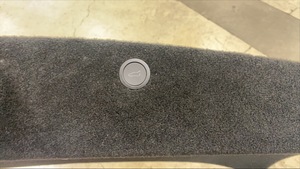

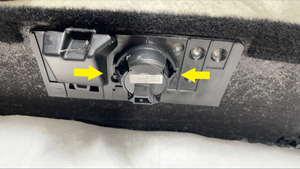

Depress both sides of the interior
liftgate switch, and then push the switch out of the lower liftgate trim to remove it
from the assembly.
Install
-
Install the interior liftgate switch
into the lower liftgate trim.
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
- Raise the LH front window and close the LH front door.
