Bracket - Racetrack - B-Pillar - Upper - LH (Remove and Replace)

Correction code 15188902 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and lower the front windows.
  2. Remove the LH front racetrack trim. See Racetrack Trim - Front - LH (Remove and Replace).

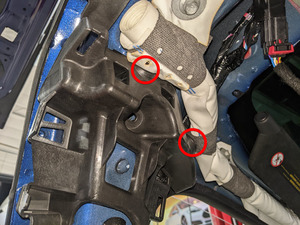

  3. Release the clips (x2) that attach the LH curtain airbag to the LH upper B-pillar racetrack bracket, and then release the airbag from the bracket.

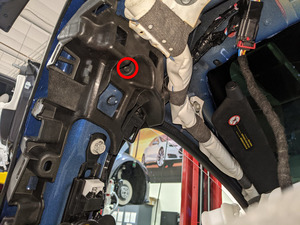

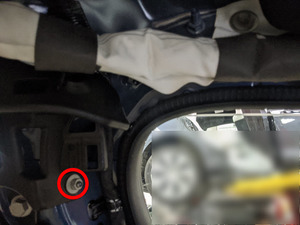

  4. Remove the bolt that attaches the LH upper B-pillar racetrack bracket to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket

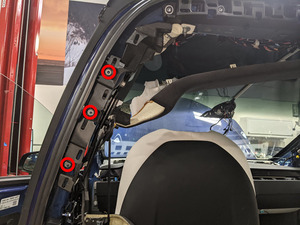

  5. Remove the nuts (x4) that attach the LH upper B-pillar racetrack bracket to the vehicle, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

Install

  1. Position the LH upper B-pillar racetrack bracket into the vehicle, and then install the nuts (x4) that attach the bracket to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket
  2. Install the bolt that attaches the LH upper B-pillar racetrack bracket to the vehicle.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket
  3. Secure the clips (x2) that attach the LH curtain airbag to the LH upper B-pillar racetrack bracket.
  4. Install the LH front racetrack trim. See Racetrack Trim - Front - LH (Remove and Replace).
  5. Raise the front windows and close all the doors.
