Actuator - Cinching - Liftgate (Remove and Replace)

Correction code 11352202 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace)
  3. Disconnect the liftgate cinching actuator electrical connector.
  4. Remove the bolts (x3) that attach the liftgate cinching actuator to the liftgate, and then remove the assembly from the liftgate.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

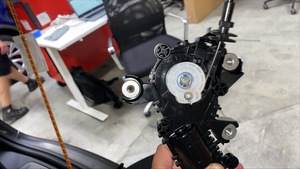

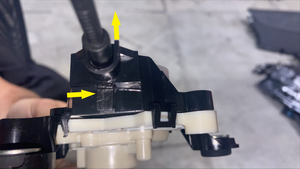

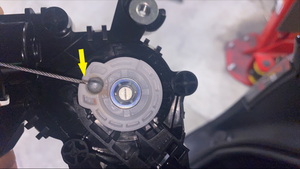

  5. Use a small flat head screwdriver to push down on the cinching cable locking tab while simultaneously pulling the cinching cable away from the cinching actuator to release it from the actuator, and then pull the cable out of the cinching actuator pulley slit.
    Informational PurposesAn informational icon, calling your attention
    Note

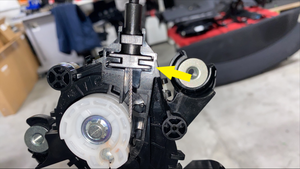

    1x tab,

Install

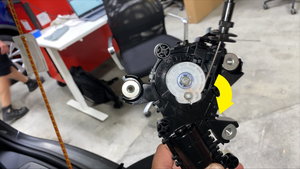

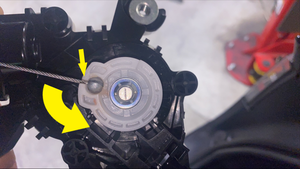

  1. Install the cinching cable into the cinching actuator pulley slit, and then wrap the cable around the pulley counterclockwise.
    Informational PurposesAn informational icon, calling your attention
    Note

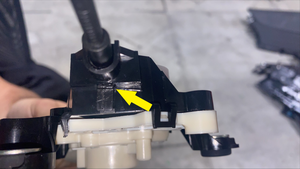

    Make sure the cable is correctly sitting in the cinching actuator grooves and the locking tab is fully secured.

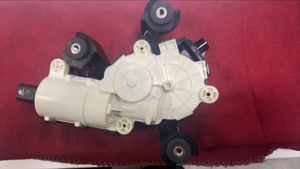

  2. Position the liftgate cinching actuator assembly into the liftgate, and then install the bolts (x3) that attach the actuator assembly to the liftgate.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket
  3. Install the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace)
  4. Raise the LH front window and close the LH front door.
