Motor - Recliner - Back Rest - Driver Seat (Remove and Replace)

Correction code 13016602 1.10 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the driver seat recliner tube. See Recliner Tube - Driver Seat (Remove and Replace).

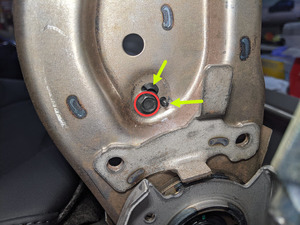

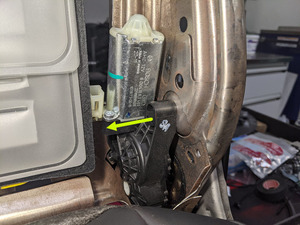

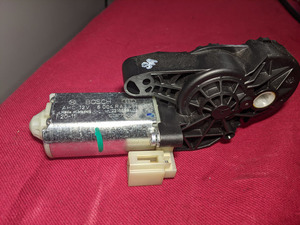

  2. Remove the bolt that attaches the driver seat back rest recliner motor to the seat assembly, and then release the motor from the assembly.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Hold the motor in place while removing the fastener to avoid damage to the dowel.

Install

  1. Position the driver seat back rest recliner motor onto the seat assembly, and then install the bolt that attaches the motor to the assembly.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Hold the motor in place while installing the fastener to avoid damage to the dowel.
  2. Install the driver seat recliner tube. See Recliner Tube - Driver Seat (Remove and Replace).
  3. Perform a seat calibration. See Seat - 1st Row (Calibration).
