Bracket - Racetrack - Sill - LH (Remove and Replace)

Correction code 15189302 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  5. Open the liftgate.
  6. Fold the LH 3rd row seat downward.

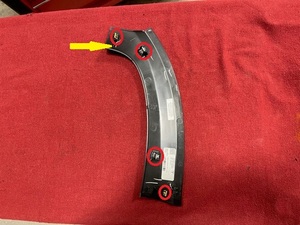

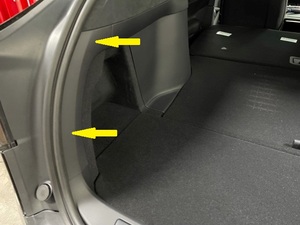

  7. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Plastic trim tool
  8. Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  9. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).

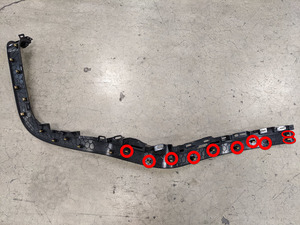

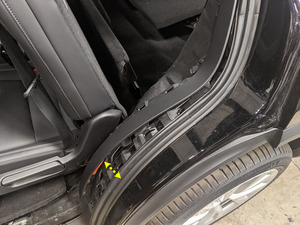

  10. Release the clips (x10) that attach the lower portion of the LH C-pillar racetrack to the vehicle, and then move lower portion of the racetrack inward to access the lower trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Plastic trim tool
  11. Remove the LH lower racetrack trim. See Racetrack Trim - Lower - LH (Remove and Replace).

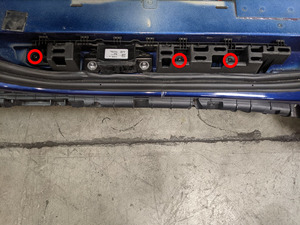

  12. Remove the bolts (x3) that secure the LH rear sill racetrack bracket to the vehicle, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T25 socket

Install

  1. Position the LH rear sill racetrack bracket on the vehicle, and then install the bolts (x3) that secure the bracket to the vehicle.
    4.5 Nm (3.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T25 socket
  2. Install the LH lower racetrack trim. See Racetrack Trim - Lower - LH (Remove and Replace).
  3. Install the clips (x10) that attach the lower portion of the LH C-pillar racetrack to the vehicle.

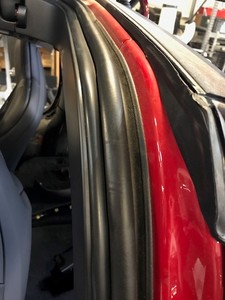

  4. Ensure that the LH falcon wing door seal is seated behind the LH C-pillar racetrack.
  5. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  6. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).

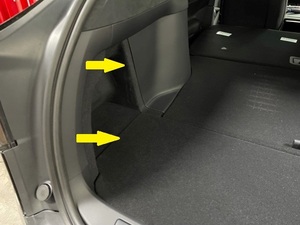

  7. Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
  8. Move the LH 3rd row seat to original position.
  9. Close the liftgate.
  10. Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  11. Close the LH and RH falcon wing doors.
  12. Raise the LH and RH front windows.
  13. Close the LH and RH front doors.
