Decor - Instrument Panel - Main (Remove and Replace)

Correction code 14057002 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2024-07-11: Added steps for removal and installation of the IP closeout panel.

Remove

  1. Remove the LH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  2. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  3. Remove the LH instrument panel middle trim. See Trim - Middle - Instrument Panel - LH (Remove and Replace).
  4. Move the steering column fully rearward and fully down.
  5. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  6. Disconnect LV power. See LV Power (Disconnect and Connect).
  7. Remove the RH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  8. Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  9. Remove the instrument panel service panel. See Service Panel - Instrument Panel (Remove and Replace)
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the cabin temperature sensor fan from the service panel.
  10. Remove the touchscreen assembly. See Touchscreen (HW3) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the display mechanism from the touchscreen after the assembly has been removed from the instrument panel.

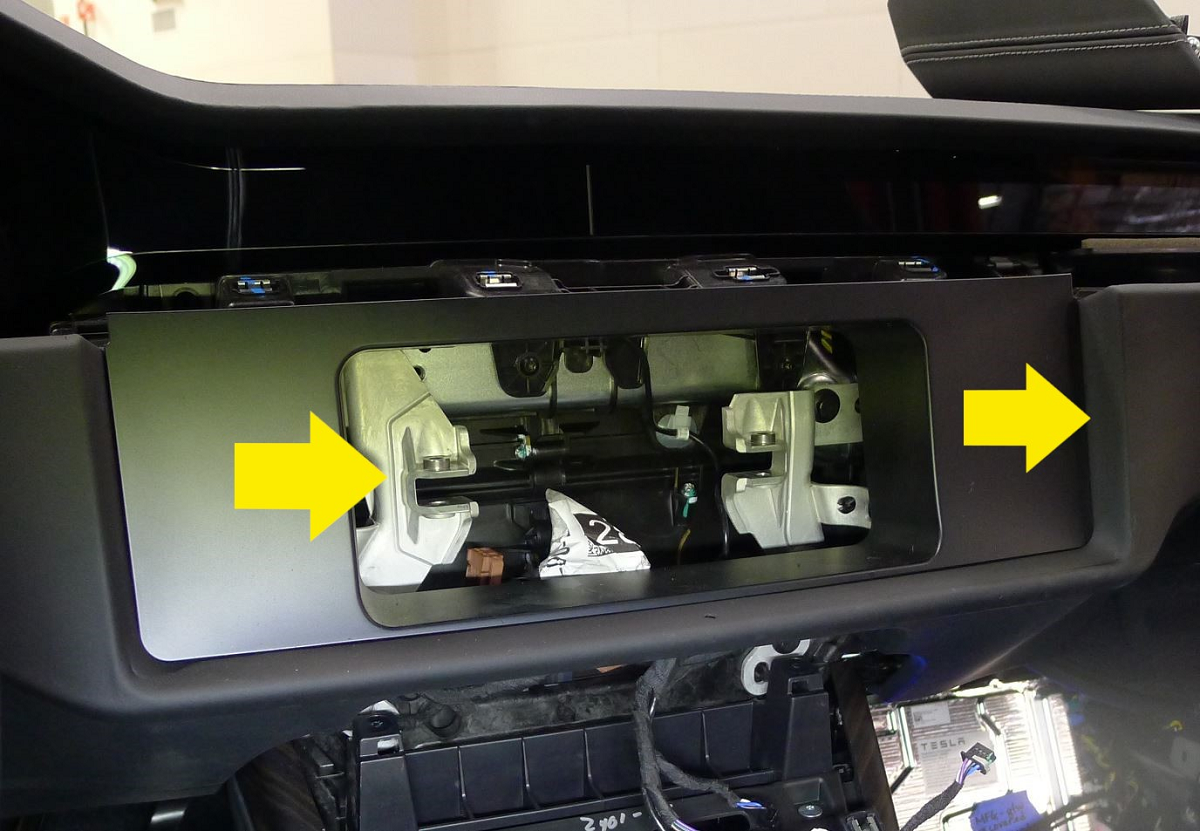

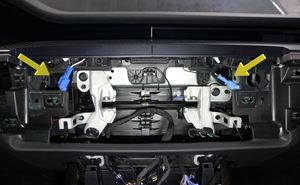

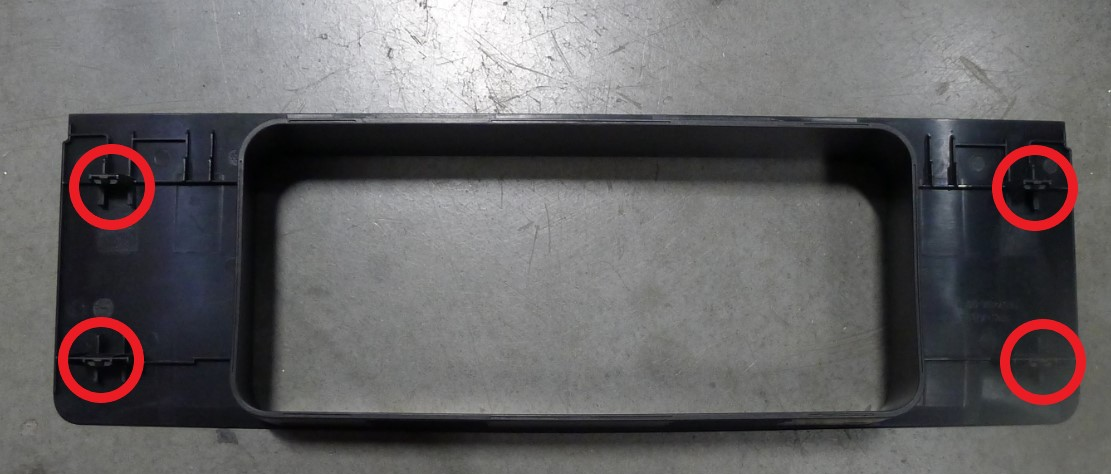

  11. Release the clips (x4) that attach the IP closout panel, and then remove the closeout panel.
  12. Remove the instrument panel RH middle trim. See Trim - Middle - Instrument Panel - RH (Remove and Replace).

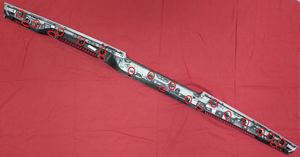

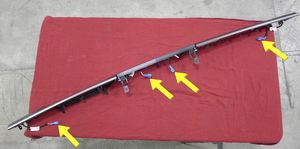

  13. Release the clips (x21) that attach the main instrument panel decor to the instrument panel, disconnect the electrical connectors (x4), and then remove the decor from the instrument panel.
    Informational PurposesAn informational icon, calling your attention
    Note

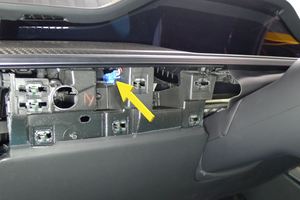

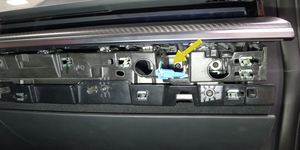

    Release each IP decor connector clip from the IP carrier, and then disconnect from IP harness.

Install

  1. Position the main instrument panel decor onto the instrument panel, connect the electrical connectors (x4), and then secure the clips (x21) that attach the decor to the instrument panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Secure each IP decor connector clip to IP carrier.
  2. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  3. Install the RH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  4. Install the instrument panel RH middle trim. See Trim - Middle - Instrument Panel - RH (Remove and Replace).
  5. Install the IP closout panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips.
  6. Install the touchscreen assembly. See Touchscreen (HW3) (Remove and Replace).
  7. Install the LH instrument panel middle trim. See Trim - Middle - Instrument Panel - LH (Remove and Replace).
  8. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  9. Install the LH IP end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  10. Move the steering column to the original position.
  11. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
