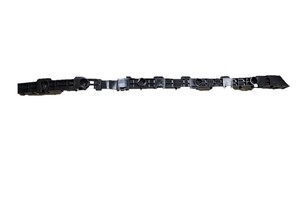

Bracket - Rear Wing - LH (Remove and Replace)

Correction code 10016102 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear fascia assembly. See Fascia Assembly - Rear (Remove and Install).

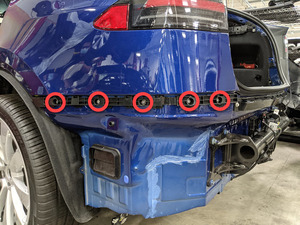

  2. Remove the screws (x5) that attach the LH rear wing bracket to the body, and then remove the bracket from the vehicle.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

  1. Position the LH rear wing bracket to the body, and then install the screws (x5) that attach the bracket to the body.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  2. Install the rear fascia assembly. See Fascia Assembly - Rear (Remove and Install).
