Duct - Instrument Panel - Front Passenger (Remove and Replace)
Correction code
18108102
0.54
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the glove box from the vehicle. See Glove Box (Remove and Replace).
-

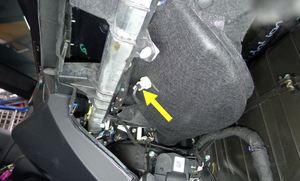

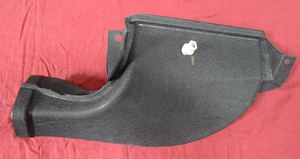

Disconnect the front passenger
instrument panel duct electrical connector.
-

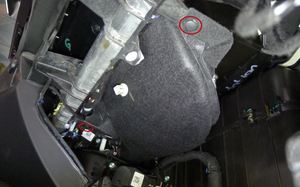

Release the rivets (x2) that attach
the front passenger instrument panel duct to the instrument panel, and then remove the
duct from the vehicle.
Install
-
Position the front passenger instrument panel duct to the instrument panel, and then
secure the rivets (x2) that attach the duct to the vehicle.
-
Connect the front passenger instrument panel duct electrical connector.
- Install the glove box into the vehicle. See Glove Box (Remove and Replace).
