Bright Strip - Center Console - Rear (Remove and Replace)

Correction code 15190312 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace).

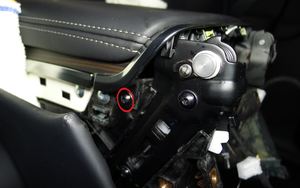

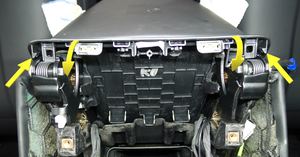

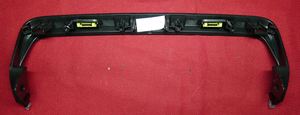

  2. Remove the screws (x6) that attach the rear center console bright strip to the center console, and then remove the bright strip from the center console.
    Informational PurposesAn informational icon, calling your attention
    Note

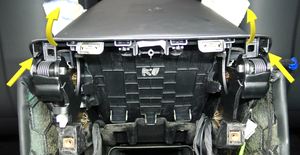

    Release the datums and rotate the brightwork up and out of the center console.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Torx T10 bit

Install

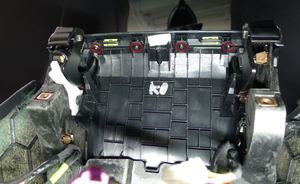

  1. Position the rear center console bright strip onto the center console, and then install the screws (x4) that attach the bright strip to the center console.
    0.7 Nm (6 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate the bright work down into the center console, and then engage the datums.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T10 bit

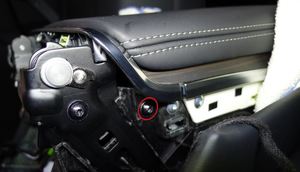

  2. Install the screws (x2) that attach the rear center console bright strip to the center console.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  3. Install the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to run the Toolbox routine if the air wave assembly is not replaced.
