Heater - Radar (Rework) (Vehicles Built After July 1, 2021)
Correction code
17201806
0.78
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
- 2024-12-18: Updated title and procedure details.
Rework
- Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install).

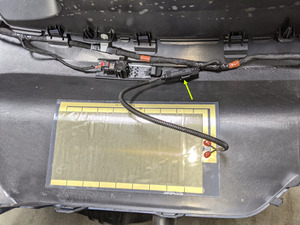

- Disconnect the radar heater electrical connector.

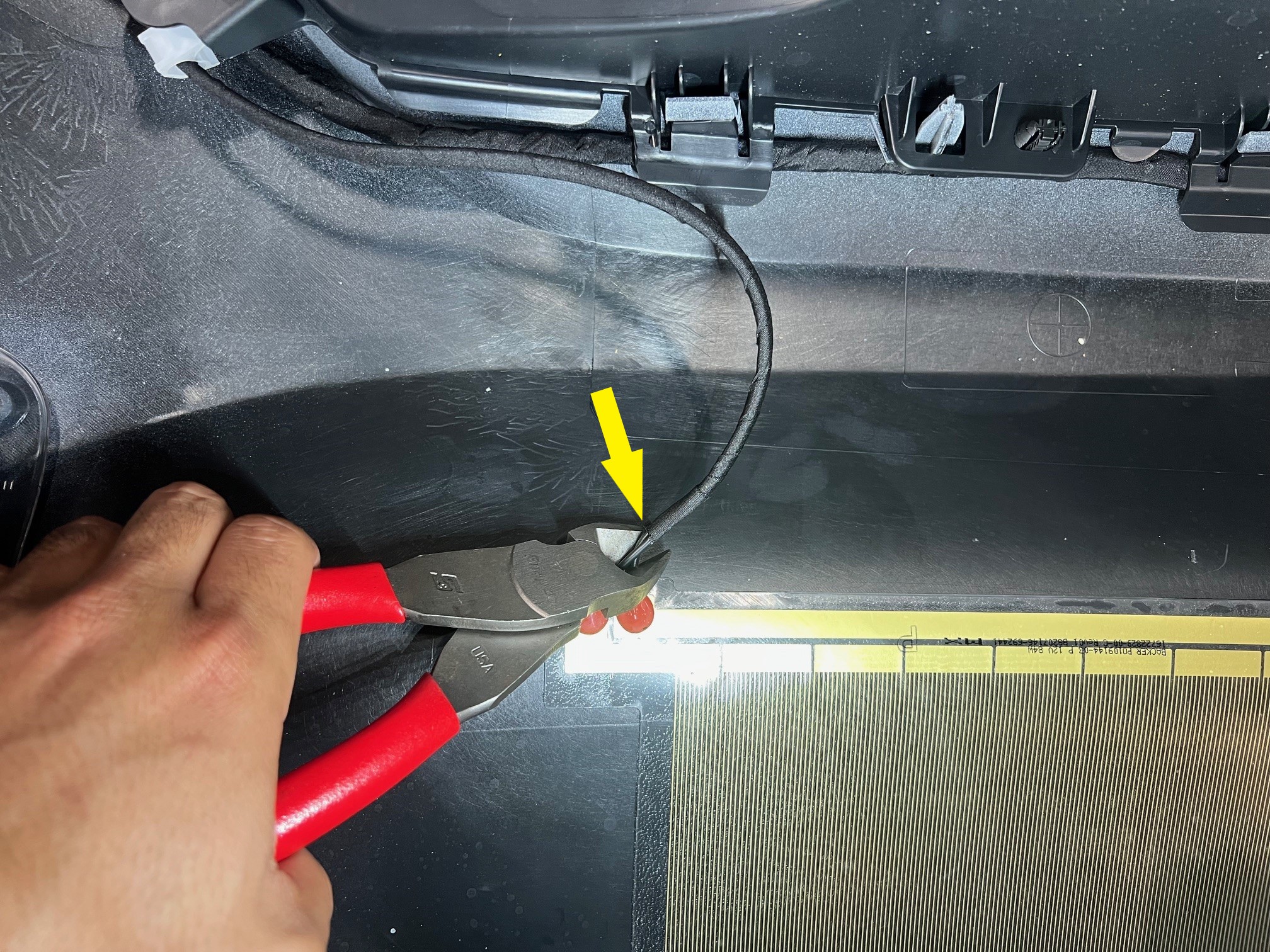

- Cut the radar heater harness near the radar heater.

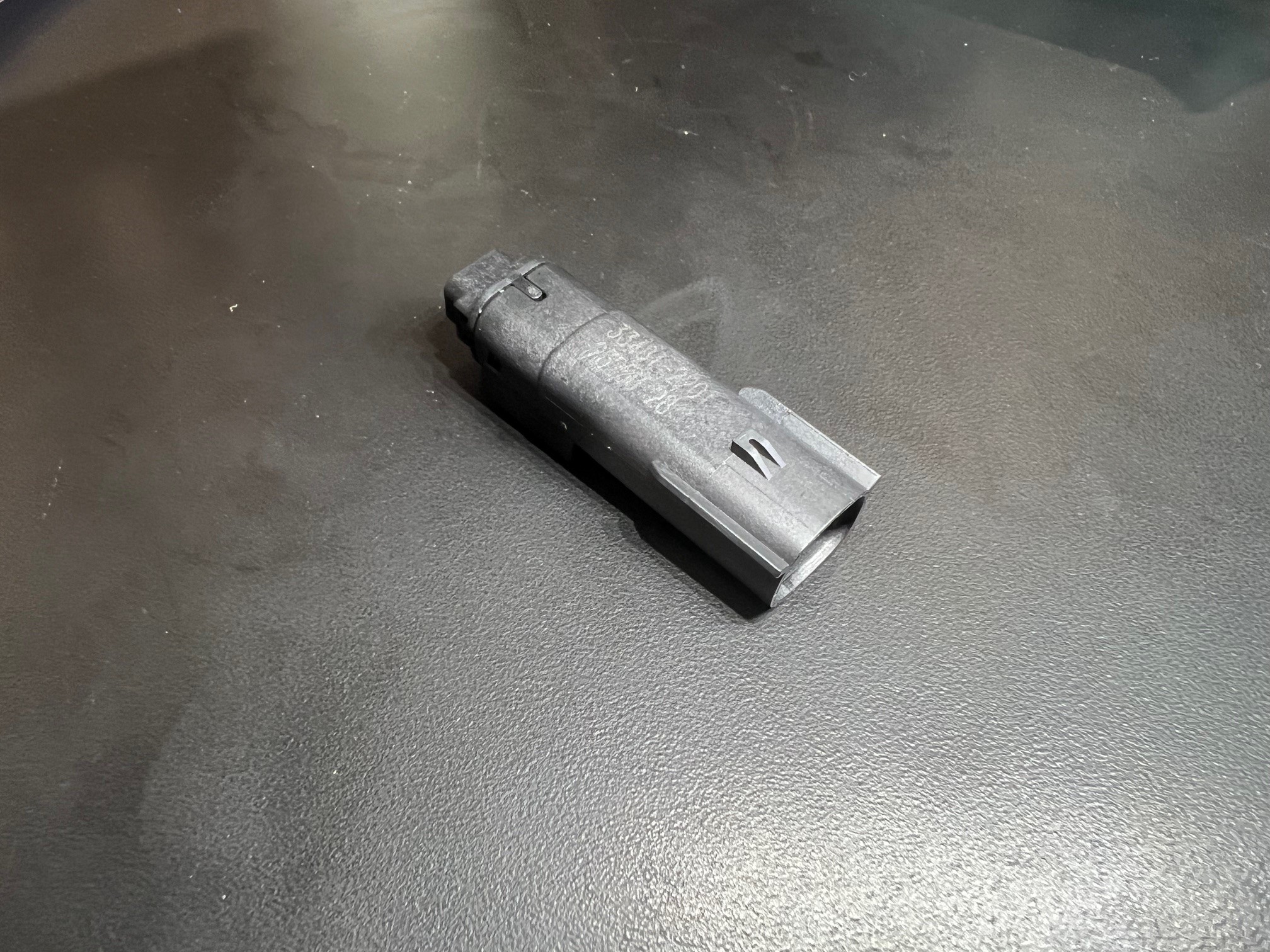

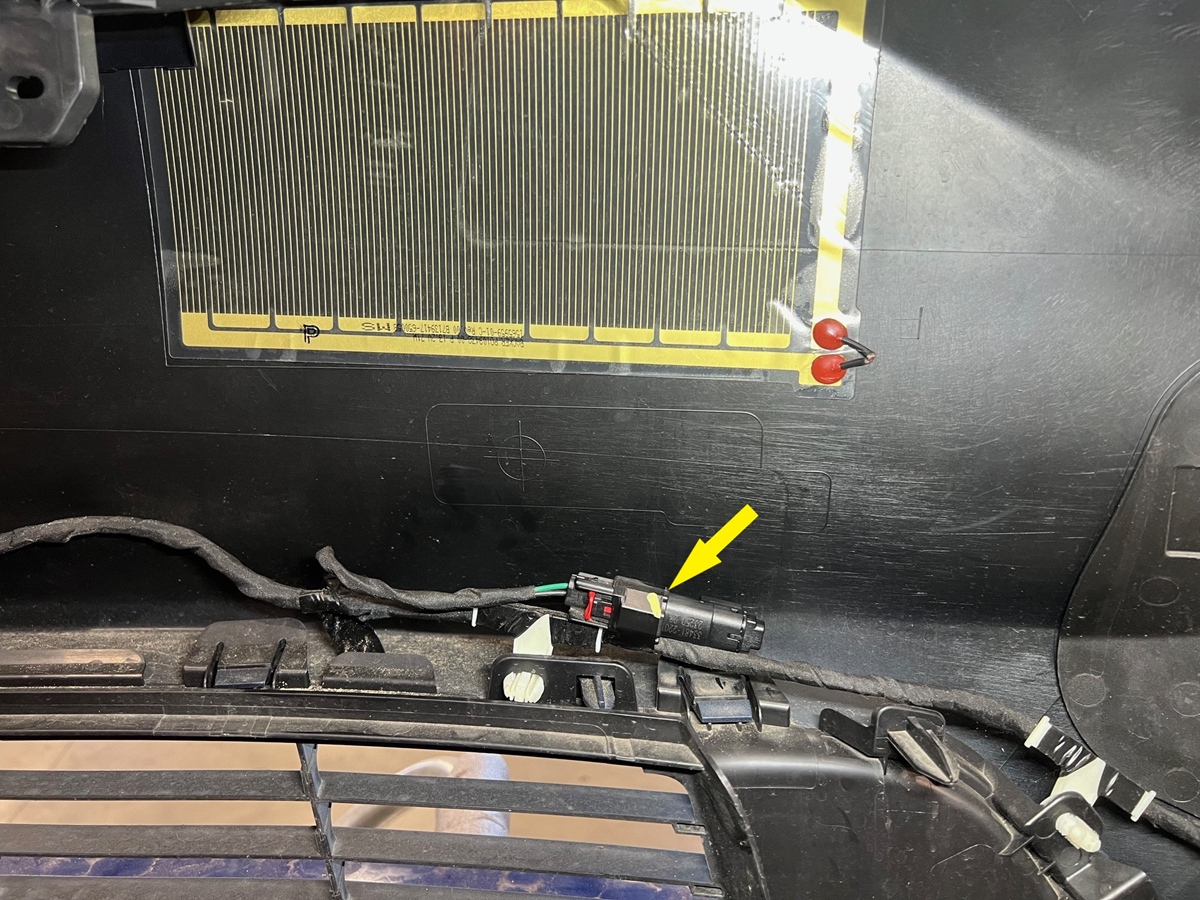

- Install a dummy plug (1471057-00-A) onto the fascia harness that goes to the radar heater.

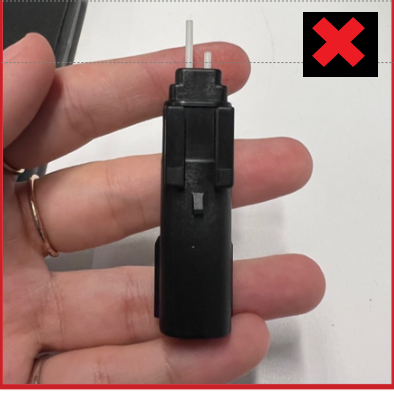

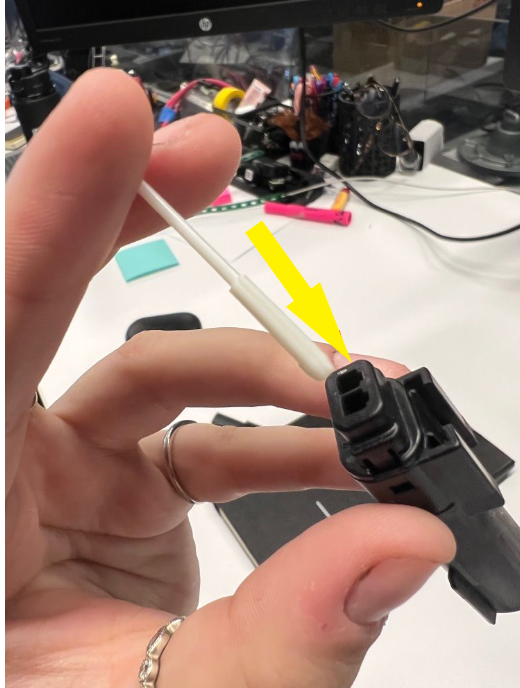

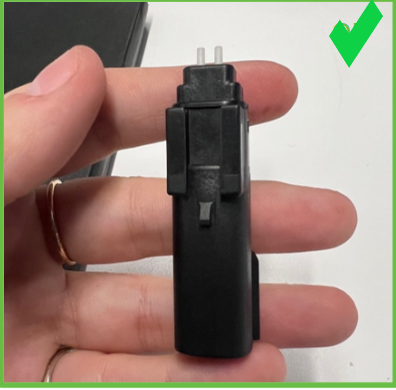

- Insert plugs (1015293-00-A) onto the back of the connector dummy plug.
- Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
