Duct - Side Window Defrost - LH (Remove and Replace)

Correction code 18100072 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  1. Open LH front door
  2. Lower LH and RH front windows
  3. Move LH front seat backward

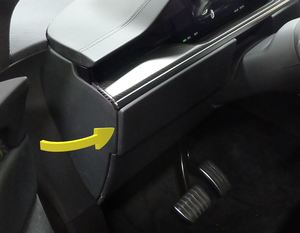

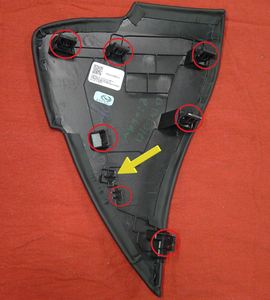

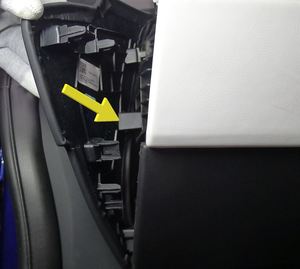

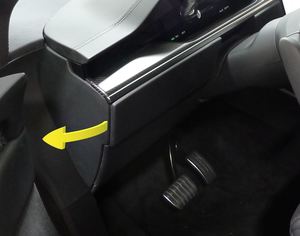

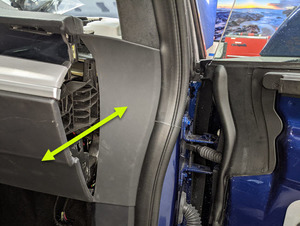

  4. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 1x datum, Ensure clip at IP carrier is released fully before removal

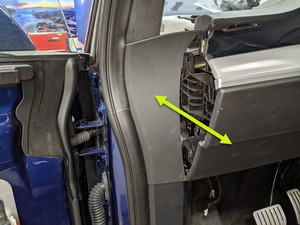

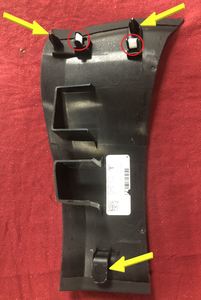

  5. Remove LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note

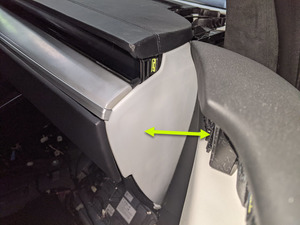

    2x clips, 3x datums, Release clips from upper A-pillar and IP sub assembly, Lift mid A-pillar trim out of lower A-pillar trim

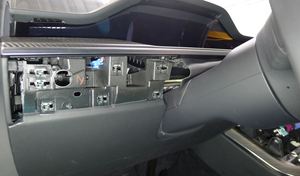

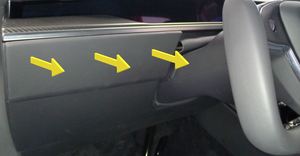

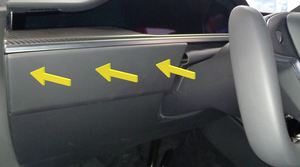

  6. Remove IP LH mid panel
    Informational PurposesAn informational icon, calling your attention
    Note

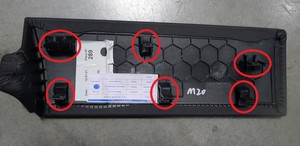

    6x tabs
  7. Adjust steering column fully rearward and fully down
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Controls > Steering , Use left steering wheel scroll wheel to adjust steering column
  8. Open RH front door
  9. Move RH front seat backward
  10. Open hood
    Informational PurposesAn informational icon, calling your attention
    Note
    Via center display > Controls > Frunk Open
  11. Power off vehicle via center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Controls > Safety & Security > Power Off

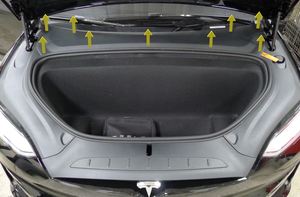

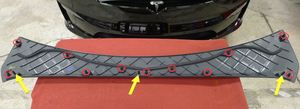

  12. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note

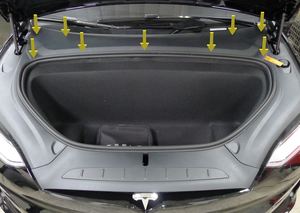

    11x clips, 2x datums

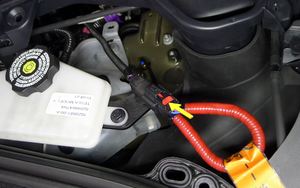

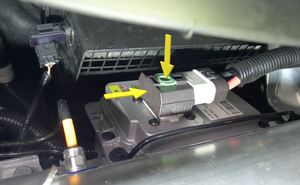

  13. Disconnect LV battery connector and First Responder Loop
    Informational PurposesAn informational icon, calling your attention
    Note

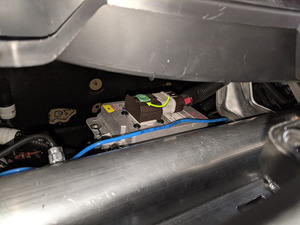

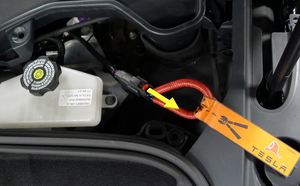

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL
  14. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  15. Remove RH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 3x datums, Release clips from upper A-pillar and IP sub assembly, Lift mid A-pillar trim out of lower A-pillar trim

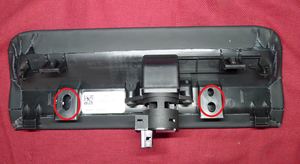

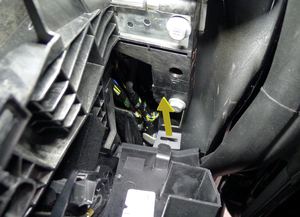

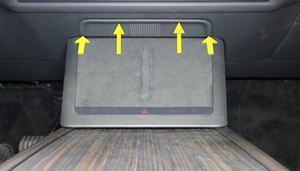

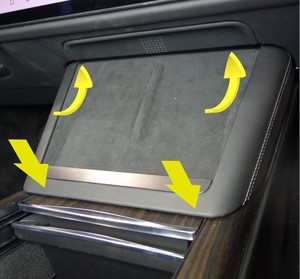

  16. Release phone dock
    Informational PurposesAn informational icon, calling your attention
    Note

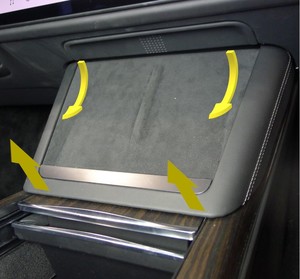

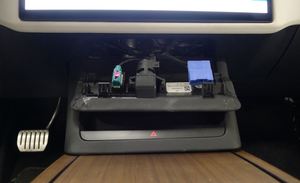

    4x clips, 2x datums, Pull up at bottom and swing out from under instrument panel

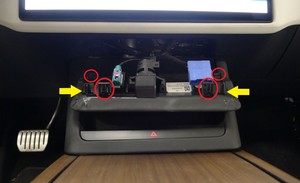

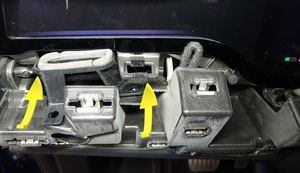

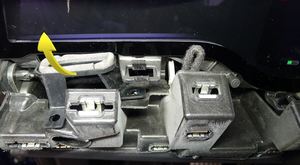

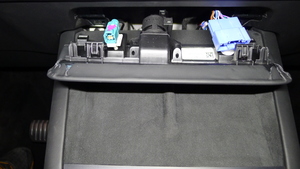

  17. Remove phone dock
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, 1x clip, Take caution to release connector locks before pulling straight out of each socket to avoid damage

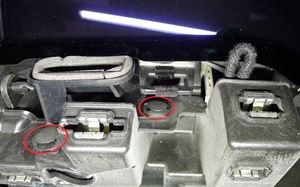

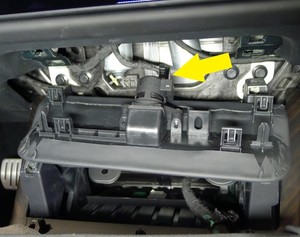

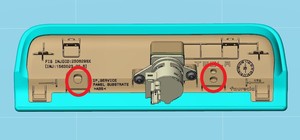

  18. Release IP service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 4x datums, Release top tabs and slide rearward

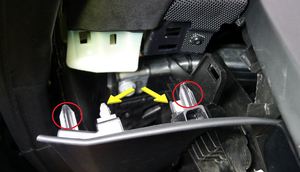

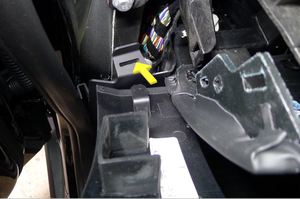

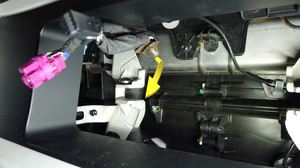

  19. Release diagnostic and CAN harnesses from IP service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

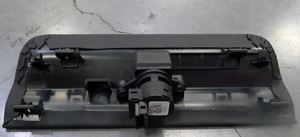

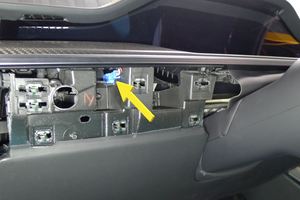

  20. Remove IP service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

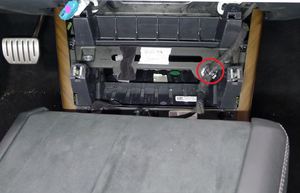

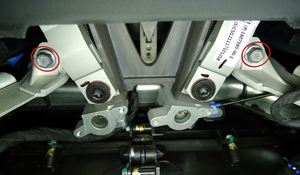

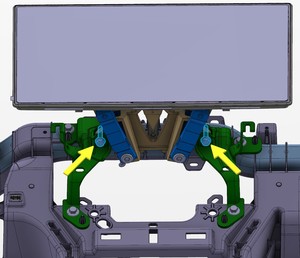

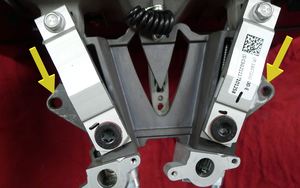

  21. Remove center display bracket bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 11.5 Nm

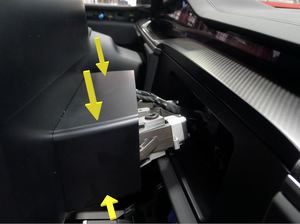

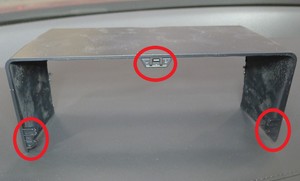

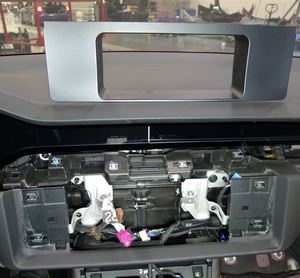

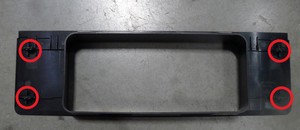

  22. Remove center display shroud
    Informational PurposesAn informational icon, calling your attention
    Note

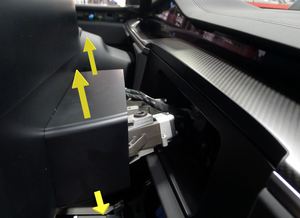

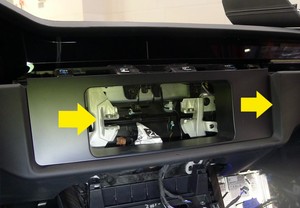

    3x tabs, Slide display outwards until shroud fully clears IP and support, Release the bottom tabs and pull upward

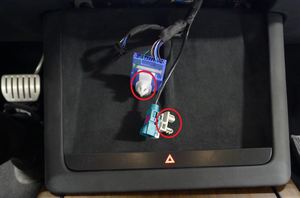

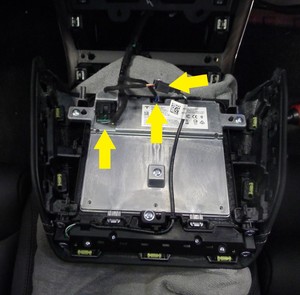

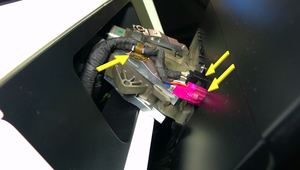

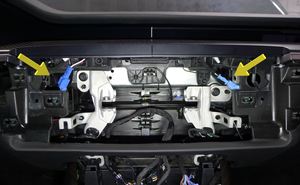

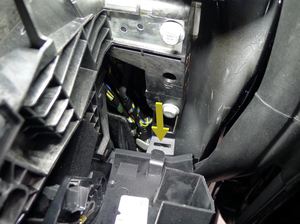

  23. Release center display coax and power connectors
    Informational PurposesAn informational icon, calling your attention
    Note

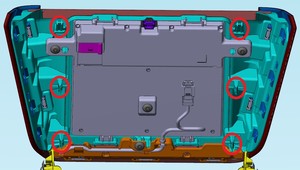

    2x connectors, 1x clip, Slide display rearward outwards from IP bracket and support during connector release

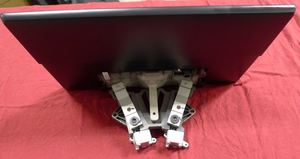

  24. Remove center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide rearward, Place on soft clean surface

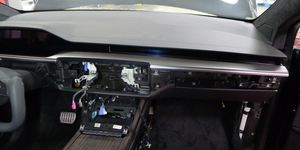

  25. Remove IP closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x tabs

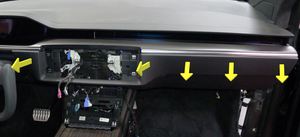

  26. Remove IP RH mid Panel
    Informational PurposesAn informational icon, calling your attention
    Note
    14x tabs, 2 datums

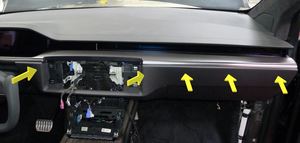

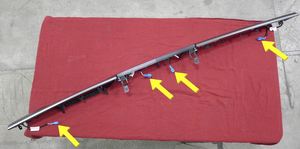

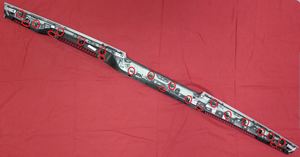

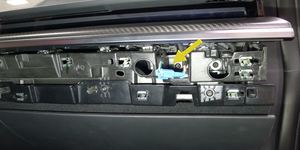

  27. Remove IP Decor
    Informational PurposesAn informational icon, calling your attention
    Note
    21x clips, 6x datums, 4x connectors, Release each IP decor connector clip from IP carrier then disconnect from IP harness

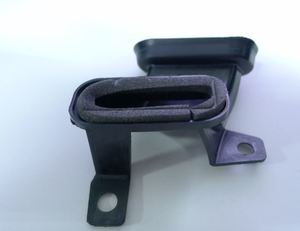

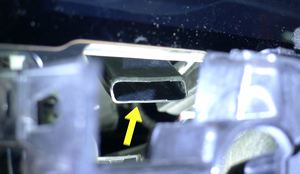

  28. Remove LH SWD duct outlet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, Rotate up and out of IP duct
  29. Install LH SWD duct outlet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, Rotate into IP duct
  30. Install IP Decor
    Informational PurposesAn informational icon, calling your attention
    Note
    21x clips, 6x datums, 4x connectors, Connect ambient bright harness, Secure each IP decor connector clip to IP carrier, Secure IP decor to lower instrument panel
  31. Install RH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 3x datums, Verify weather seal is seated properly
  32. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  33. Install IP RH mid Panel
    Informational PurposesAn informational icon, calling your attention
    Note
    14x tabs, 2 datums
  34. Install IP closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x tabs

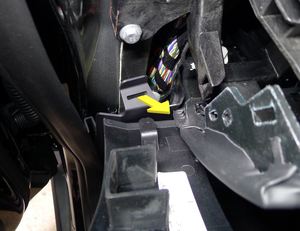

  35. Route display harness behind LH display bracket
  36. Secure center display coax and power connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 1x clip, Ensure strain relief clip is secure to linkage arm, Replace clip if damaged
  37. Install center display shroud
    Informational PurposesAn informational icon, calling your attention
    Note
    3x tabs, Slide display downward until shroud tabs fully engages
  38. Secure center display to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 11.5 Nm, Slide center display into IP carrier, Start RH bolt first
  39. Secure IP service panel connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  40. Secure diagnostic and CAN harnesses to IP service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  41. Install IP service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 4 datums, Slide forward engaging datums then secure tabs upward into IP
  42. Install phone dock connections
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, 1x clip

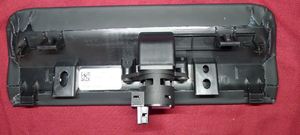

  43. Install phone dock
    Informational PurposesAn informational icon, calling your attention
    Note

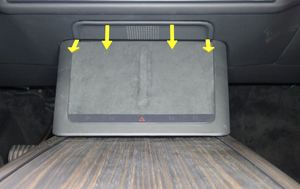

    2x datums, 4 tabs, Slide datums forward into IP and secure tabs down into center console

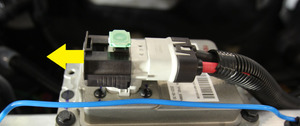

  44. Connect First Responder Loop and LV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated
  45. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    11x clips, 2x datums
  46. Close hood
  47. Move RH front seat to original position
  48. Close RH front door
  49. Install IP LH mid panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x tabs
  50. Install LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 3x datums, Insert mid A-pillar trim into lower A-pillar trim, Secure clips into upper A-pillar and IP sub assembly, Verify weather seal is seated properly
  51. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 1x datum
  52. Adjust steering column back to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI>Controls>Steering , Use left steering wheel scroll wheel to adjust steering column
  53. Move LH front seat to original position
  54. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
  55. Raise LH and RH front windows
  56. Close LH front door
