Wheel Arch Liner - Rear - LH (Remove and Replace)

Correction code 12011102 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Post Lift.
  2. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).

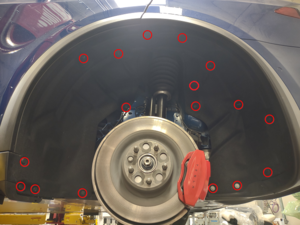

  3. Remove the bolts (x2), release the push clips (x11) and fan clips (x4) that attach the LH rear wheel arch liner to the body, and then remove the liner from the vehicle.

Install

  1. Install the LH rear wheel arch liner into the LH rear wheel arch, and then install the bolts (x2), and fasten the push clips (x11) and fan clips (x4) that attach the wheel arch liner to the body.
    5 Nm (3.7 lbs-ft)
  2. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
  3. Remove the vehicle from the 2-post lift. See Raise Vehicle - 2 Post Lift.
