Brake Pads and Rotors - Rear - Set (Remove and Replace)

Correction code 33011005 1.14 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2025-07-01: Added correct rake burnishing step,
  • 2023-11-09: Updated rear caliper to knuckle torque to 115 Nm.
  • 2023-10-16: Added step to make sure caliper piston face is aligned for Mando calipers.
  • 2023-3-24: Moved brake pedal pumping to before reservoir level check, and added precautionary steps for fluid spillage.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift.
  2. Open the LH front door and lower the LH front window.
  3. Release the LH and RH park brake calipers using Toolbox. See Park Brake Caliper - Release.
  4. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  5. Place absorbent material underneath the brake booster and the brake fluid reservoir area.
  6. Clean the area around brake fluid reservoir, and then remove the brake reservoir cap.
  7. Remove the LH and RH rear wheels. See Wheel Assembly (Remove and Install).
  8. Release the red locking tab, and then disconnect the electrical harness from the RH rear brake caliper motor connector.

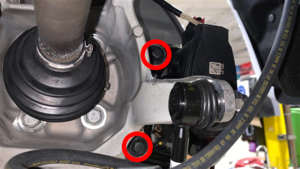

  9. Remove the bolts (x2) that attach the RH rear caliper to the bracket, and then let the caliper hang from the body.
    26 Nm (19.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm socket
  10. Use a caliper spreader kit or similar tool to gently push the pistons back into the brake caliper.
  11. Remove the brake pads (x2) from the rear caliper bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press the anti-rattle spring tab (x1 on each side) to release the brake pads.
  12. Remove the anti-rattle springs (x2) from the rear brake caliper.
  13. Clean the RH rear brake caliper with brake cleaner.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a nylon brush only, if necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute dry time.

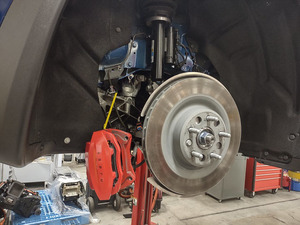

  14. Remove the bolts (x2) that attach the RH rear brake caliper to the rear knuckle, and then let the caliper hang from the body using S-hooks.
    115 Nm (84.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • External Torx E18
    Informational PurposesAn informational icon, calling your attention
    Note
    Route the caliper hose so that it does not get caught on the rear stabilizer bar.
  15. If installed, remove the bolt that attaches the RH rotor to the hub.
    Informational PurposesAn informational icon, calling your attention
    Note
    Some vehicles may not have this fastener installed from the factory.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
  16. Remove the RH rotor from the rear knuckle.
  17. Repeat step 8 through step 16 for the LH side of the vehicle.

Install

  1. Position the RH rear rotor onto the rear knuckle.
  2. Install the RH rear brake caliper to the knuckle, and then secure the caliper with bolts (x2).
    115 Nm (84.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • External Torx E18
  3. Install the anti-rattle springs (x2) onto the rear brake caliper.
  4. Install the brake pads (x2) onto the rear caliper bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the brake pads seat past the spring tabs.
  5. If a Mando calipler, use needle-nose pliers to ensure that the slots in the rear brake caliper piston face are at the 12 o'clock and 6 o'clock positions.
  6. Install the bolts (x2) that attach the rear caliper onto the bracket.
    26 Nm (19.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm socket
  7. Connect the EPB electrical connector to the caliper motor.
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully seat the electrical connector, and then engage the locking tab.
  8. Repeat step 1 through step 7 on the LH side of the vehicle.
  9. Install the LH and RH rear wheels. See Wheel Assembly (Remove and Install).
  10. Pump the brake pedal repeatedly until firm to seat the brake pads against the rotors.
  11. Check brake fluid level and top off the reservoir, if necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the brake fluid level is above the Max line, remove the extra brake fluid.
  12. Install the brake reservoir cap.
  13. Remove the absorbent material from underneath the brake booster and brake fluid reservoir area.
  14. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  15. Burnish the brakes. See Brake Pads - Burnishing.
    Informational PurposesAn informational icon, calling your attention
    Note
    During vehicle driving, make sure that proper brake pedal feel and performance is achieved.
    Informational PurposesAn informational icon, calling your attention
    Note
    Add the correction code for brake pad burnishing 33013000 as a separate activity to the Service Visit.
