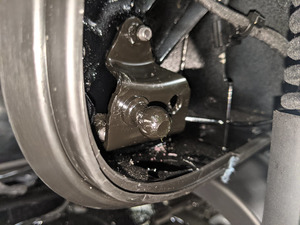

Ball Stud Bracket - Front - Rear Door - LH (Remove and Replace)

Correction code 11337702 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH windows.
  2. Remove the LH upper rear door glass assembly. See Door Glass Assembly - Rear - Upper - LH (Remove and Replace).

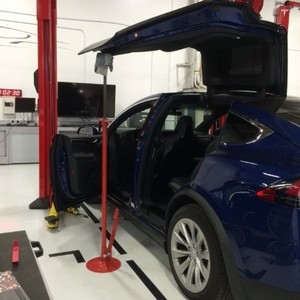

  3. Support the LH falcon wing door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Place protection between the stand and door.

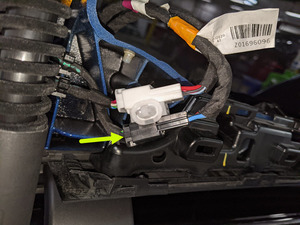

  4. Disconnect the LH rear door secondary strut harness electrical connector.

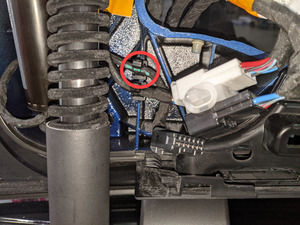

  5. Release the clips (x2) that attach the LH rear door secondary strut harness to the LH rear door.

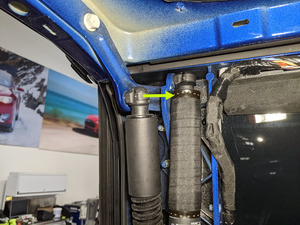

  6. Release the C-clip while pulling the LH rear door secondary strut away from the ball joint.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not fully remove the C-clip.

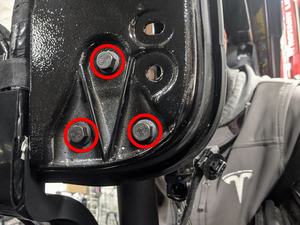

  7. Remove the bolts (x3) that attach the LH rear door front ball stud bracket to the LH upper rear door assembly, and then remove the bracket from the door assembly.
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

Install

  1. Position the LH rear door front ball stud bracket into the LH upper rear door assembly, and then install the bolts (x3) that attach the bracket to the door assembly.
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket
  2. Fasten the clips (x2) that attach the LH rear door secondary strut harness to the LH rear door.
  3. Connect the LH rear door secondary strut harness electrical connector.
  4. Install the LH rear door secondary strut onto the LH rear door, and then secure the C-clip.
  5. Remove the support stand.
  6. Install the LH upper rear door glass assembly. See Door Glass Assembly - Rear - Upper - LH (Remove and Replace).
  7. Raise the LH windows and close the LH front door.
