Cover - Recliner - 2nd Row - LH (Remove and Replace)

Correction code 13083502 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).

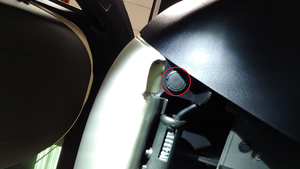

  2. Remove the clip that attaches the LH 2nd row recliner cover to the seat assembly.

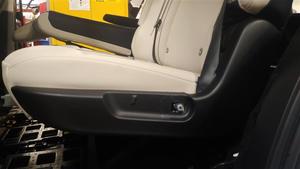

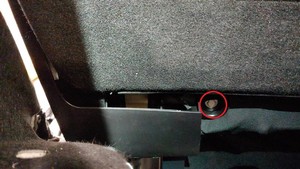

  3. Remove the bolt that attaches the LH 2nd row seat recliner cover to the seat assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following is recommended:
    • 10mm socket

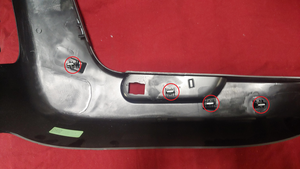

  4. Release the clips (x4) that attach the LH 2nd row recliner cover to the seat assembly, and then lift the cover upward to remove it from the vehicle.

Install

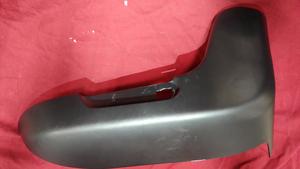

  1. Position the LH 2nd row recliner cover onto the seat assembly, hook the cover to the top right corner of the seat, and then secure the clips (x4) that attach the cover to the seat assembly.
  2. Install the bolt that attaches the LH 2nd row seat recliner cover to the seat assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following is recommended:
    • 10mm socket
  3. Install the clip that attaches the LH 2nd row recliner cover to the seat assembly.
  4. Install the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
