Fairing - Rocker Panel - Rear - LH (Remove and Replace)

Correction code 12202202 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

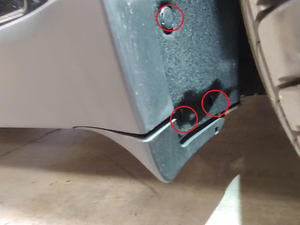

  1. Remove the bolts (x2) and clips (x3) that attach the LH rear rocker panel fairing to the vehicle, and then remove the fairing from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

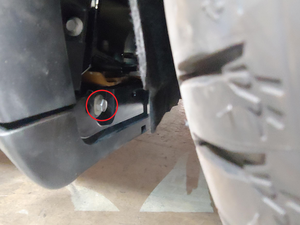

    Peel back the fender liner to access the 10mm bolt.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket
    • 10mm socket

Install

  1. Position the LH rear rocker panel fairing onto the vehicle, and then install the 10mm bolt that attaches the fairing to the vehicle.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

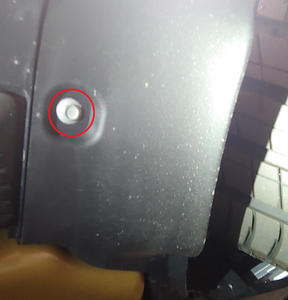

  2. Install the 8 mm bolt that attaches the LH rear rocker panel fairing onto the vehicle.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket
  3. Install the clips (x3) that attach the LH rear rocker panel fairing onto the vehicle.
