Sensor - Air Quality (Remove and Replace)
Correction code
18107002
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
-

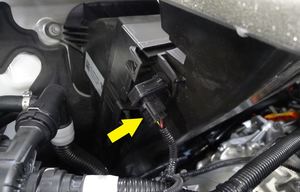

Disconnect the electrical harness from
the air quality sensor connector.
-

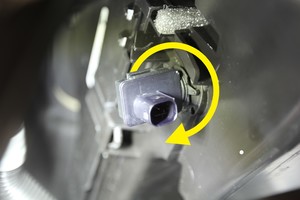

Use a plastic trim tool to raise the
tab at the air quality sensor base out of the divot, rotate the air quality sensor
counter-clockwise 45 degrees, and then remove the sensor from the duct.
Install
-

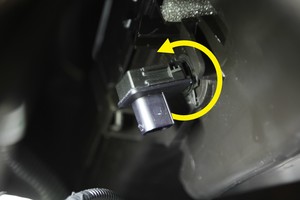

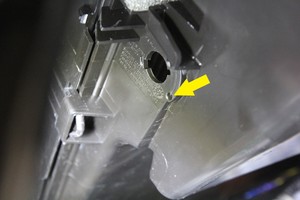

Align the tab at the base of the air
quality sensor with the notch in the hole in the duct, install the sensor, and then
rotate the sensor clockwise 45 degrees, so that the tab engages the divot.
-
Connect the electrical harness to the
air quality sensor connector.
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
