Noise Absorber - Motor Bay - Rear (Remove and Replace)

Correction code 12010202 2.76 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Open the LH front door.
  3. Lower the LH and RH front windows.
  4. Remove the rear subframe assembly. See Subframe Assembly - Rear (Plaid) (Remove and Install).

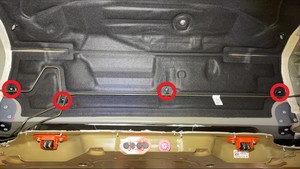

  5. Release the clips (x4) that attach the rear motor bay brake line to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate the clips counter clockwise to aid in removal.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip pry tool

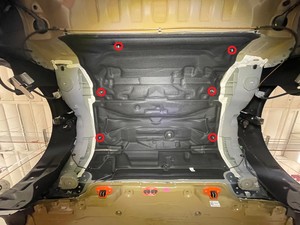

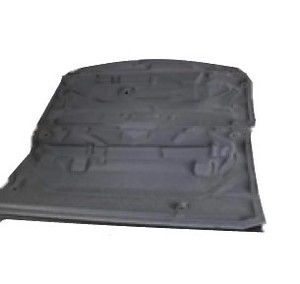

  6. Release the clips (x6) that attach the rear motor bay noise absorber to the body, and then remove the noise absorber from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip pry tool

Install

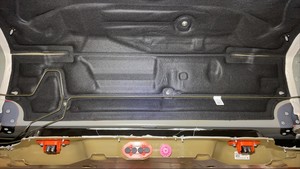

  1. Position the rear motor bay noise absorber on the vehicle, and then install the clips (x6) that attach the noise absorber to the body.
  2. Install the clips (x4) that attach the rear motor bay brake line to the body.
  3. Install the rear subframe assembly. See Subframe Assembly - Rear (Plaid) (Remove and Install).
  4. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
  5. Perform four wheel alignment check and adjust. See .
  6. Raise the LH and RH front windows.
  7. Close the LH front door.
