Correction code 21151001 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

1. Open LH front door

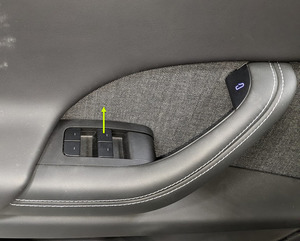

2. Lower LH and RH front windows
3. Open RH front door

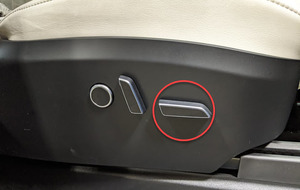

4. Move RH front seat backward

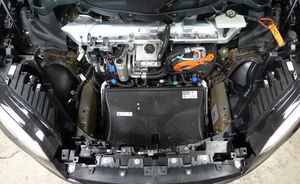

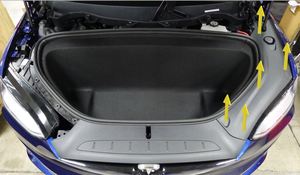

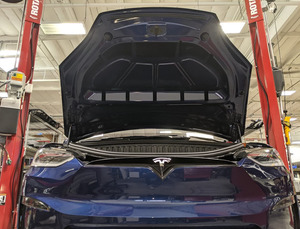

5. Open hood
   Note

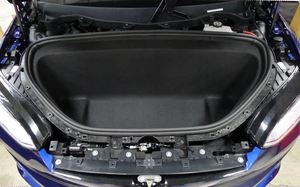

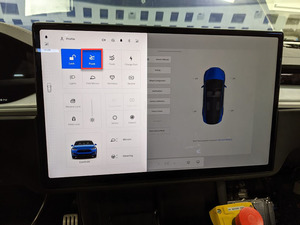

   Via center display > Controls > Frunk Open





6. Power off vehicle via center display
   Note

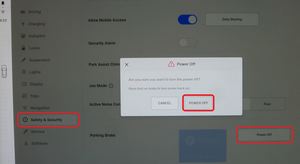

   Controls > Safety & Security > Power Off

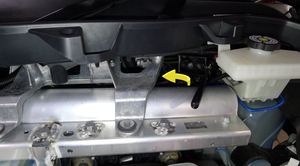

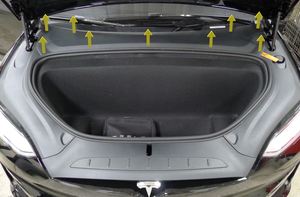

7. Remove rear underhood apron
   Note

   11x clips, 2x datums

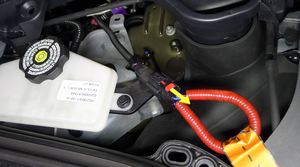

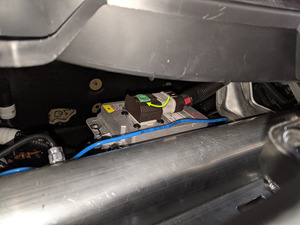

8. Disconnect LV battery connector and First Responder Loop
   Note

   2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL

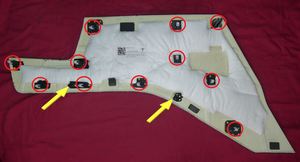

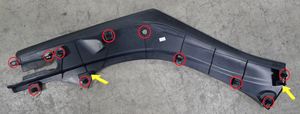

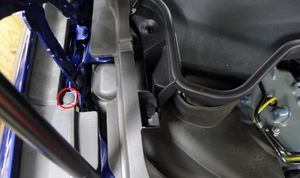

9. Remove RH underhood apron
   Note

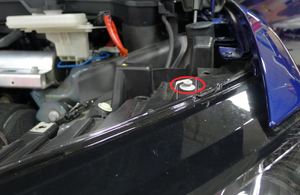

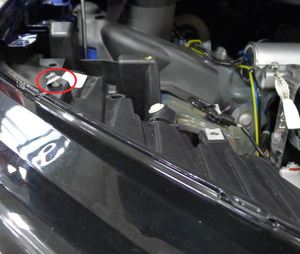

   11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp









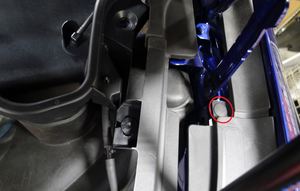

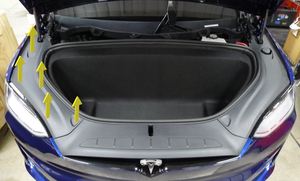

10. Remove LH underhood apron
    Note

    11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp

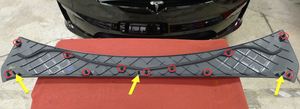

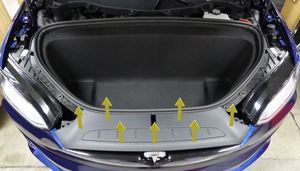

11. Remove front underhood apron
    Note

    12x clips, 3 datums

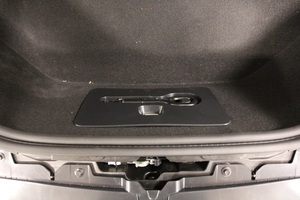

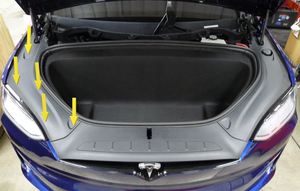

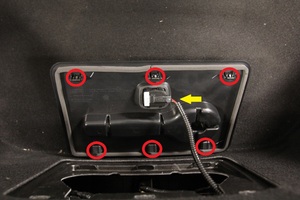

12. Remove frunk access panel
    Note

    3x clips, 3x hooks, 1x connector

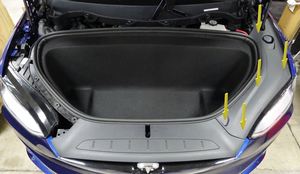

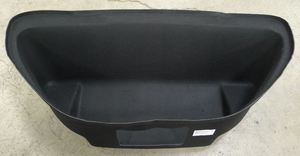

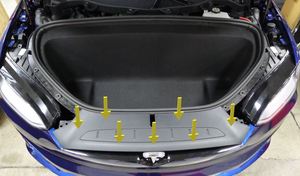

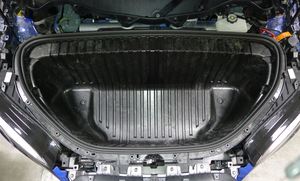

13. Remove frunk carpet

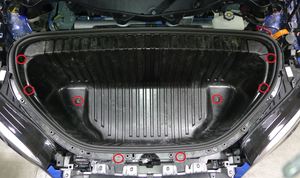

14. Remove frunk assembly
    Note

    8x bolts, 10mm, 5 Nm

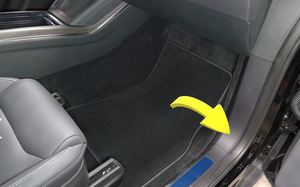

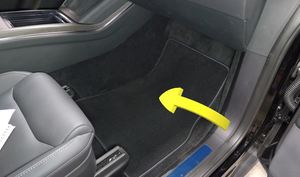

15. Remove RH front floor mat

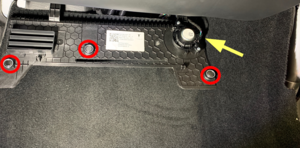

16. Remove RH footwell cover
    Note

    3x magnets, 1x connector, 4x datums





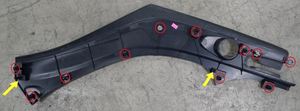

17. Remove RH console side carpet
    Note

    11x clips, 2x datums

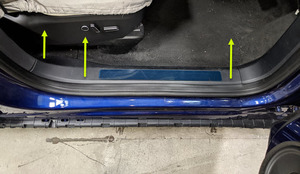

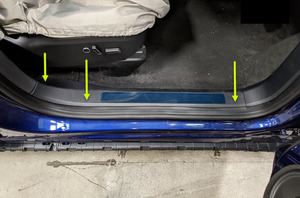

18. Remove RH front sill plate
    Note

    5x clips



19. Remove RH IP end cap
    Note

    3x clips

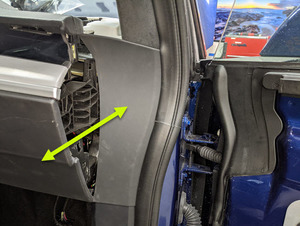

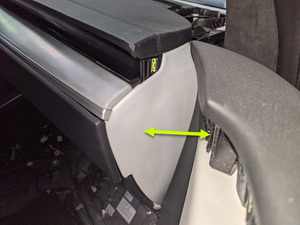

20. Remove RH mid A-pillar trim
    Note

    1x clip, 1x locating clip

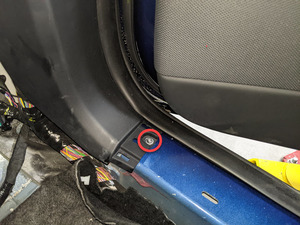

21. Remove RH lower A-pillar trim
    Note

    1x bolt, T25, 5 Nm, 2x clips

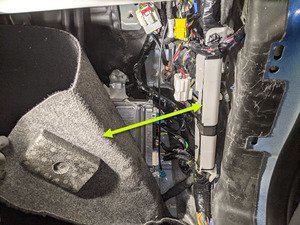

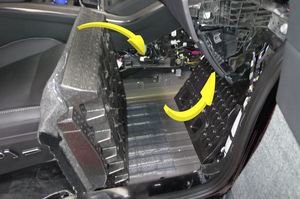

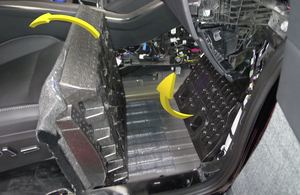

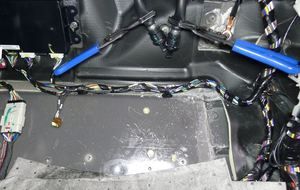

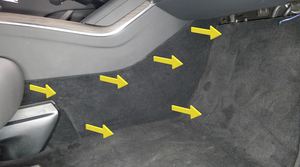

22. Fold RH front cabin carpet aside for access



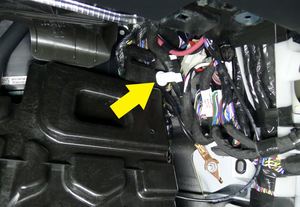

23. Release harness from RH footrest panel
    Note

    1x clip

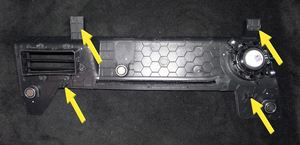

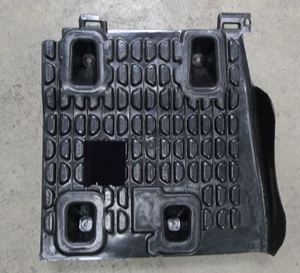

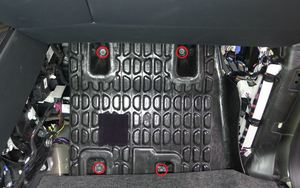

24. Release RH footrest panel
    Note

    2x bolts, 10mm, 5 Nm, 2x nut, 10mm, 5 Nm



25. Remove RH footrest panel
    Note

    Fold RH primary support carpet up, Rotate RH footrest panel out of vehicle

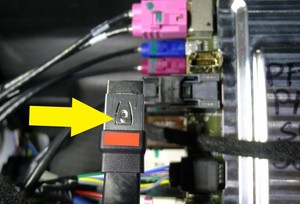

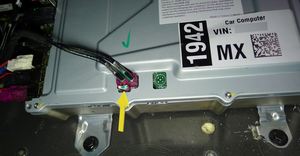

26. Release connector to gaming MCU
    Note

    1x connector, Depress lock on underside of connector before pulling out of socket, Possible damage to PCBA may occur if removed without releasing lock first

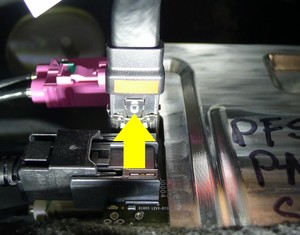

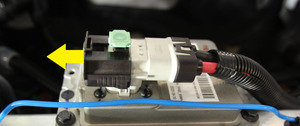

27. Release connector to connectivity module
    Note

    1x connector, Move release lock rearward before removal

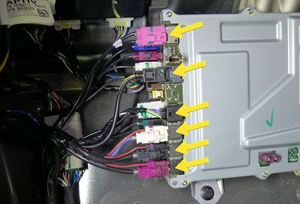

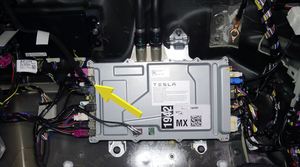

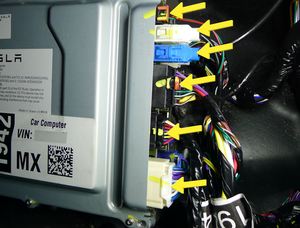

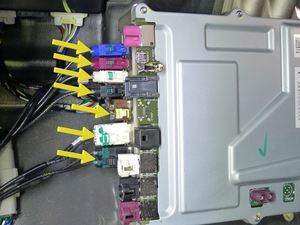

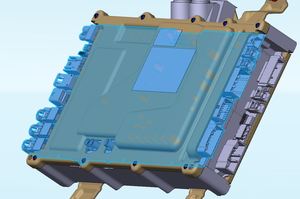

28. Release connections at LH side of entertainment motherboard
    Note

    6x connectors, Release locks on connectors before removal





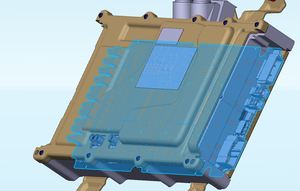

29. Release connections at LH side of AP motherboard
    Note

    7x connectors, Release locks on connectors before removal

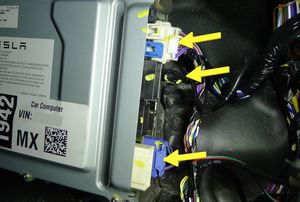

30. Release connectors at RH side of entertainment motherboard
    Note

    6x connectors, Release locks on connectors before removal





31. Release connectors at RH side of AP motherboard
    Note

    3x connectors, Release locks on connectors before removal

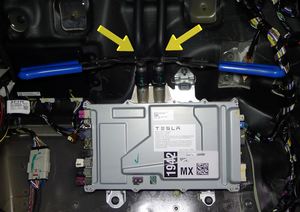

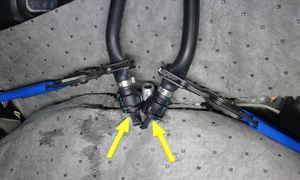

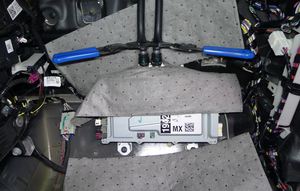

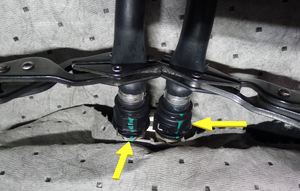

32. Install coolant hose clamps to coldplate hoses
    Note

    2x hoses, Place coolant absorbent mats or rags around the car computer

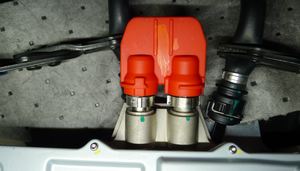

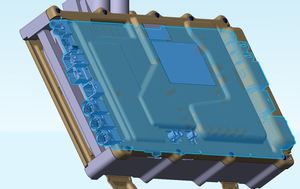

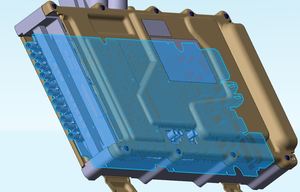

33. Release coolant hoses from car computer coldplate assembly
    Note

    2x spring locks, Install coolant plugs at both hoses and car computer

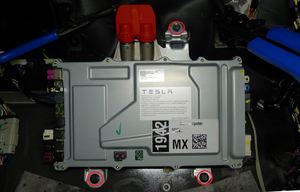

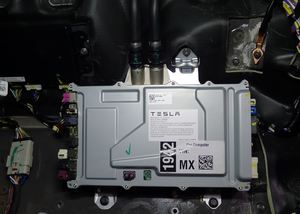

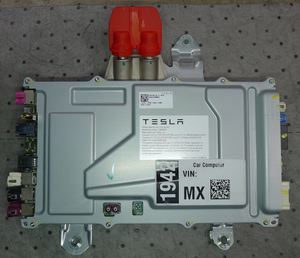

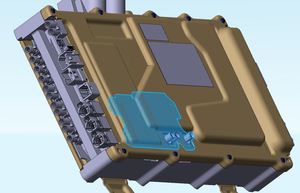

34. Remove car computer from vehicle
    Note

    2x bolts, 10mm, 7 Nm, 1x nut, 10mm, 8 Nm, Remove any residual coolant from vehicle





35. Install car computer to vehicle
    Note

    2x bolts, 10mm, 7Nm, 1x nut, 10mm, 8Nm







36. Secure coolant hoses to car computer coldplate assembly
    Note

    2x spring locks, Place coolant absorbent mats or rags around the car computer, Remove coolant plugs, Ensure spring locks engage and perform pull-push-pull test on each hose coupling



37. Remove coolant hose clamps
    Note

    2x hoses, Remove absorbent material, Clean residual fluid, Inspect for leaks







38. Install connectors at RH side of AP motherboard
    Note

    3x connectors





39. Install connectors at RH side of entertainment motherboard
    Note

    6x connectors





40. Install connections at LH side of AP motherboard
    Note

    7x connectors





41. Install connections at LH side of entertainment motherboard
    Note

    6x connectors





42. Install connector to connectivity module
    Note

    1x connector, Slide lock underneath connector





43. Install connector to gaming MCU
    Note

    1x connector, Confirm connector locked into socket

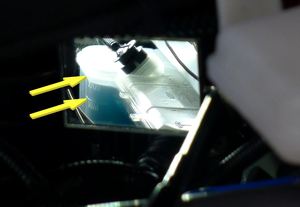

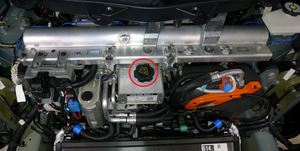

44. Remove coolant bottle cap



45. Inspect coolant level and top off as necessary
    Note

    Ensure that the fluid level is at the Max line, Top off fluid as required





46. Connect the First Responder Loop and LV battery connector.
    Note

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated





47. Install RH footrest panel
    Note

    Rotate RH footrest panel into vehicle, Fold RH primary support carpet down





48. Secure RH footrest panel
    Note

    2x bolts, 10mm, 5 Nm, 2x nut, 10mm, 5 Nm



49. Secure harness to RH footrest panel
    Note

    1x clip



50. Fold RH main carpet back into place



51. Install RH footwell cover
    Note

    3x magnets, 4x datums, 1x connector





52. Install RH lower A-pillar trim
    Note

    1x bolt, T25, 5 Nm, 2x clips



53. Install RH mid A-pillar trim
    Note

    1x clip, 1x locating clip, Verify weather seal is seated properly



54. Install RH IP end cap
    Note

    3x clips



55. Install RH front sill plate
    Note

    5x clips



56. Install RH front floor mat



57. Move RH front seat to original position



58. Raise RH front window



59. Close RH front door
60. Perform a cooling system check and fill. See Cooling System (Partial Refill and Bleed).

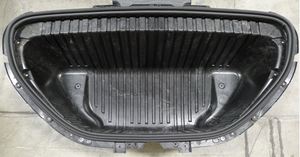

61. Install frunk assembly
    Note

    8x bolts, 10mm, 5 Nm







62. Install frunk carpet
    Note

    Verify carpet is properly seated under the seal





63. Install frunk access panel
    Note

    3x clips, 3x hooks, 1x connector

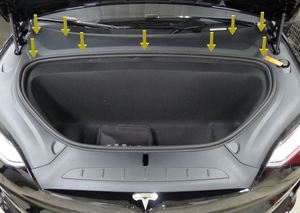

64. Install front underhood apron
    Note

    12x clips, 3x datums





65. Install LH underhood apron
    Note

    11x clips, 2 datums







66. Install RH underhood apron
    Note

    11x clips, 2x datums







67. Install rear underhood apron
    Note

    11x clips, 2x datums





68. Close hood



69. Calibrate the rear doors.
    Note

    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
70. Raise LH front window



71. Close LH front door
