Actuator - Defrost (Remove and Replace)

Correction code 18102402 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the front passenger instrument panel duct. See Duct - Instrument Panel - Front Passenger (Remove and Replace).
  2. Remove the RH panel actuator. See Actuator - Duct - Footwell - RH (Remove and Replace).

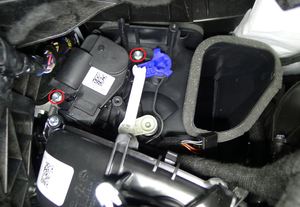

  3. Remove the screws (x2) that attach the defrost actuator to the HVAC assembly, and then release the actuator from the assembly.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

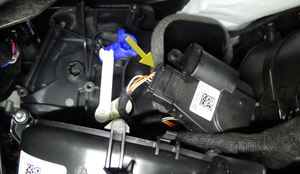

  4. Disconnect the defrost actuator electrical connector, and then remove the actuator from the vehicle.

Install

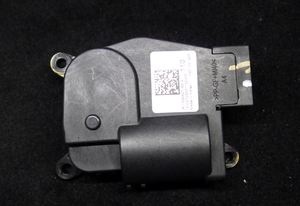

  1. Position the defrost actuator into the vehicle, and then connect the electrical connector.

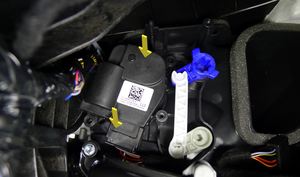

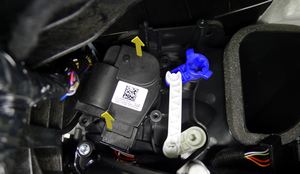

  2. Position the defrost actuator into the HVAC assembly, and then install the screws (x2) that attach the actuator to the assembly.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

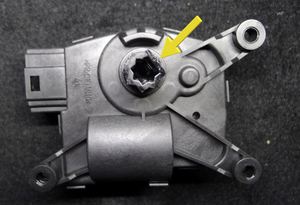

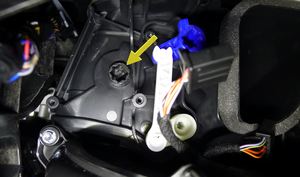

    The actuator is keyed to HVAC assembly. Align the actuator before installing the screws.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Install the RH panel actuator. See Actuator - Panel - RH (Remove and Replace).
  4. Install the front passenger instrument panel duct. See Duct - Instrument Panel - Front Passenger (Remove and Replace).
