Seal - Outer Belt - Front Door - LH (Remove and Replace)

Correction code 11703002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Pull up on the LH front door outer belt seal to remove it from the door assembly.

Install

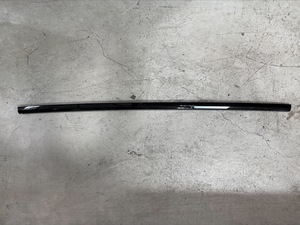

  1. Position the LH outer belt seal onto the door assembly, and then press down to secure it.
    Informational PurposesAn informational icon, calling your attention
    Note
    Applying P-80 to channel may make installation easier, Press down to secure molding to door
  2. Raise the LH front window and close the LH front door.
