Bezel - Exterior Door Handle - Front - LH (Remove and Replace)
Correction code
11451302
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the front windows.
-

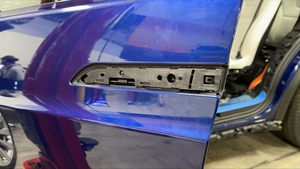

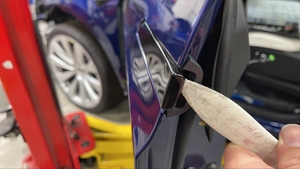

Use a plastic trim tool to slide the
LH front exterior door handle bezel outboard and then rearward to remove it from the
vehicle.
Install
-

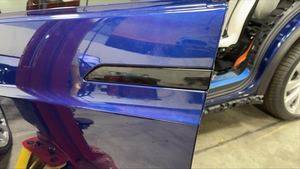

Position the LH front exterior door
handle bezel onto the LH front door, and then slide the bezel forward to install it onto
the door.
- Raise the front windows and close the LH front door.
