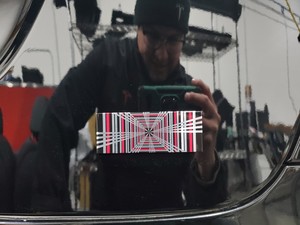

Plaid Graphic Badge (Remove and Replace)

Correction code 12054102 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

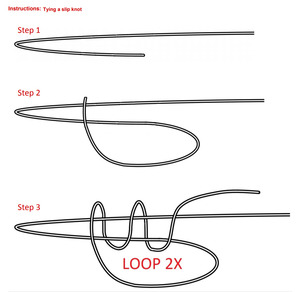

  1. Cut the badge removal kit wire, and then tie slip knots onto both handles as required.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:

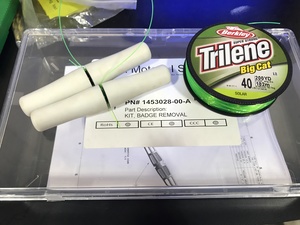

    • Badge removal kit - 1453028-00-A
    • Scissors
    • Tape measure metric/inch

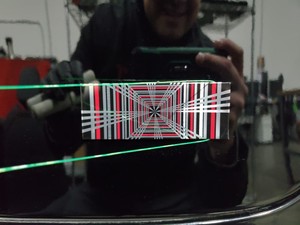

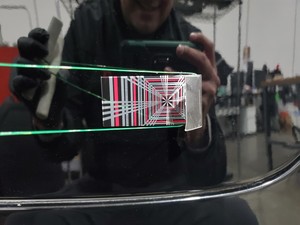

  2. Feed the wire back and forth to separate the plaid graphic badge from the liftgate surface, and then remove the badge from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Bend the badge during removal to prevent adhesive from reattaching.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Badge removal kit - 1453028-00-A

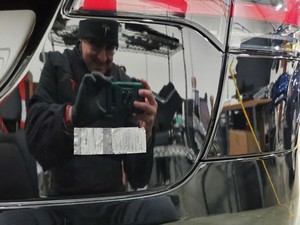

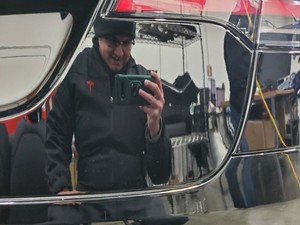

  3. Use IPA wipes to remove old adhesive residue from the liftgate surface area. Allow 1 minute dry time.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • IPA wipes

Install

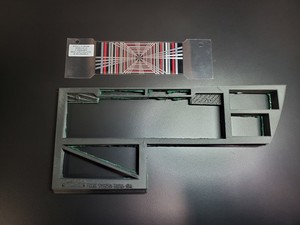

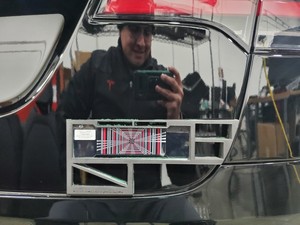

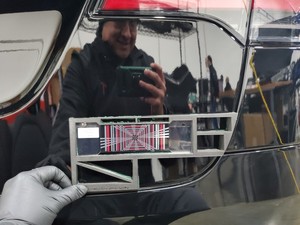

  1. If necessary, install the new plaid graphic badge with film on the badge alignment tool, and then perform a dry fit check.
    Informational PurposesAn informational icon, calling your attention
    Note

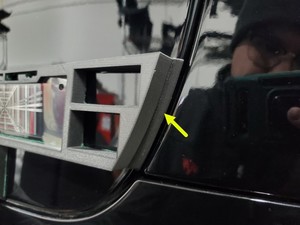

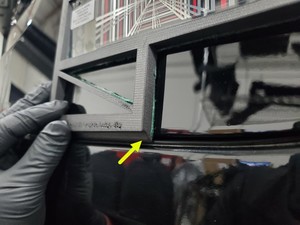

    The badge alignment tool will line up along the RH bottom corner of the liftgate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • MX palladium plaid graphic badge jig - 1783340-00-A

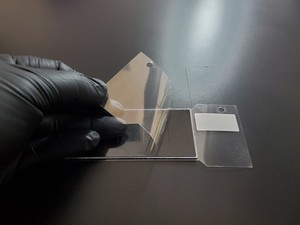

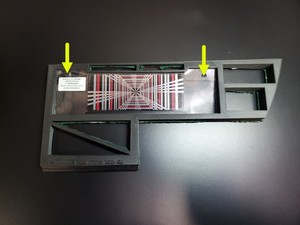

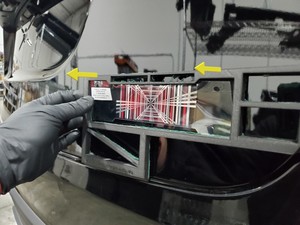

  2. Peel off the adhesive backing film from the new plaid graphic badge, and then install the badge on the badge alignment tool.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • MX palladium plaid graphic badge jig - 1783340-00-A
  3. Install the new plaid graphic badge on the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note

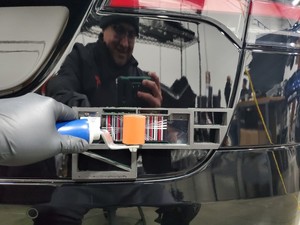

    Starting from the center and working outwards, use a seam roller to apply pressure and allow the badge to fully adhere to the liftgate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • MX palladium plaid graphic badge jig - 1783340-00-A
    • Seam roller - 1049517-00-A
  4. Remove the adhesive film and alignment tool from the plaid graphic badge.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • MX palladium plaid graphic badge jig - 1783340-00-A

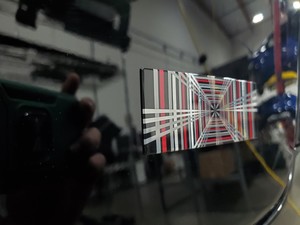

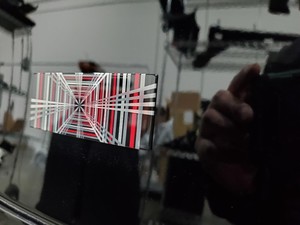

  5. Visually inspect the plaid graphic badge and verify proper installation. Wipe away any contamination.
