End Cap - Instrument Panel - LH (Remove and Replace)

Correction code 14054102 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.

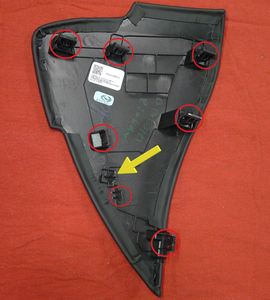

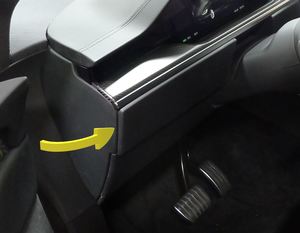

  2. Release the clips (x7) that attach the LH instrument panel end cap to the instrument panel, and then remove the end cap from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

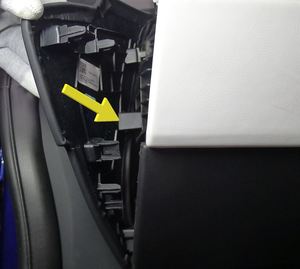

    Ensure the clip at instrument carrier is released fully before removal.

Install

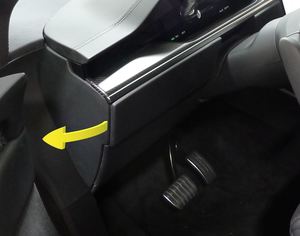

  1. Position the LH instrument panel end cap onto the instrument panel, and then secure the clips (x7) that attach the end cap to the vehicle.
  2. Raise the LH front window and close the LH front door.
