Bracket - Tie Down - Rear Trunk - RH (Remove and Replace)

Correction code 15240022 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the liftgate.
  2. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).

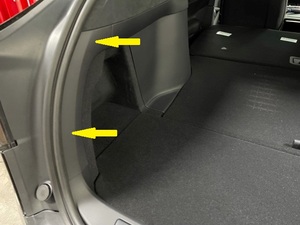

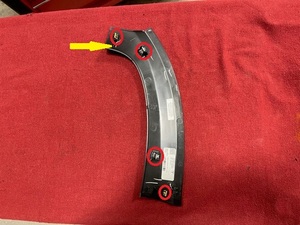

  3. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Plastic trim tool

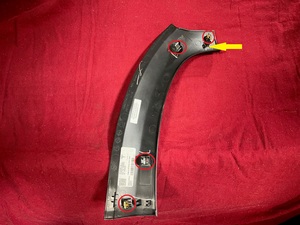

  4. Release the clips (x4) that attach the RH trunk sill side trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Plastic trim tool
  5. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

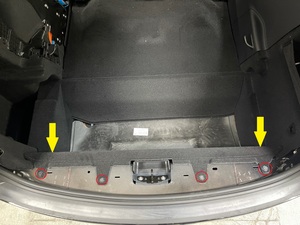

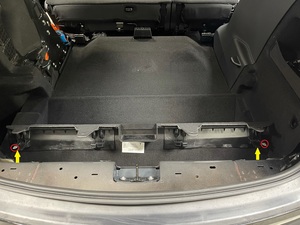

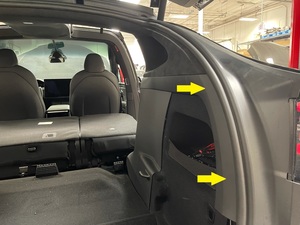

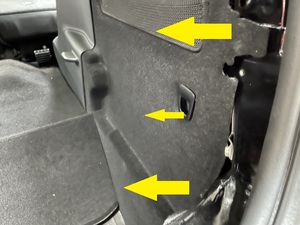

  6. Release the push clips (x4) and clips (x2) that attach the rear wall load support to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool

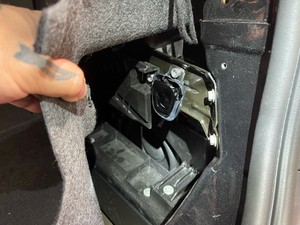

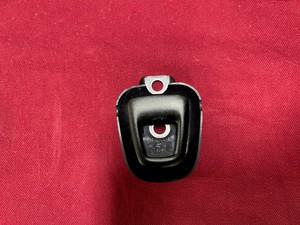

  7. Release the RH rear trunk tie down ring that attaches the side trim carpet to the tie down.

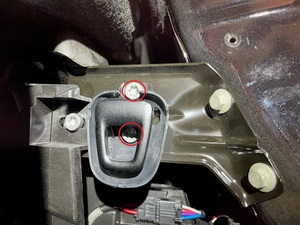

  8. Remove the bolts (x2) that secure the RH rear trunk tie down to the bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T45 socket
  9. Remove the bolt that secures the RH rear trunk side trim to the tie down bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T45 socket

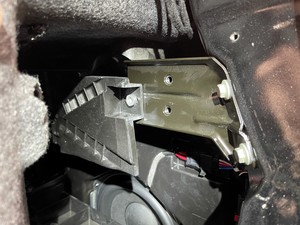

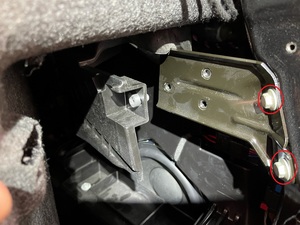

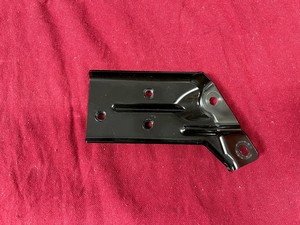

  10. Remove the bolts (x2) that secure the RH rear trunk tie down bracket to the vehicle, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Flex head ratchet/flex head torque wrench

Install

  1. Position the RH rear trunk tie down bracket on the vehicle, and then install the bolts (x2) that secure the bracket to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
  2. Install the bolt that secures the RH rear trunk side trim to the tie down bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T45 socket
  3. Install the bolts (x2) that secure the RH rear trunk tie down to the bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T45 socket
  4. Install the RH rear trunk tie down ring that attaches the side trim carpet to the tie down.
  5. Install the push clips (x4) and clips (x2) that attach the rear wall load support to the vehicle.
  6. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  7. Install the clips (x4) that attach the RH trunk sill side trim to the vehicle.
  8. Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
  9. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  10. Close the liftgate.
