Gas Strut - Hood - LH (Remove and Replace)
Correction code
11330502
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the hood.
- Use the center display to power off the vehicle.
- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
- Remove the LH underhood apron. See Underhood Apron - LH (Remove and Replace).
-

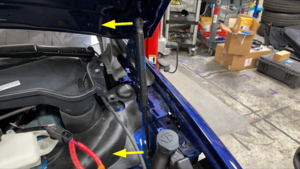

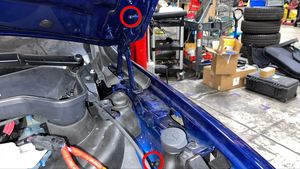

Release the clips (x2) that attach the
LH hood gas strut to the hood and body, and then remove the strut from the
vehicle.
Install
-

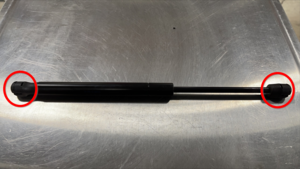

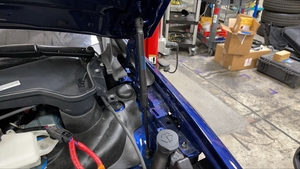

Position the LH hood gas strut into
the vehicle, press each end of the strut firmly into the ball socket, and then secure
the clips (x2).
- Install the LH underhood apron. See Underhood Apron - LH (Remove and Replace).
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
