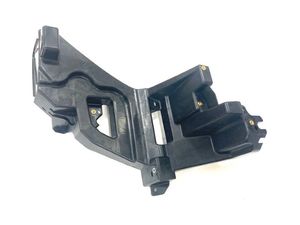

Bracket - Headlight - LH (Remove and Replace)

Correction code 10100052 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH headlight. See Headlight - LH (Remove and Replace).

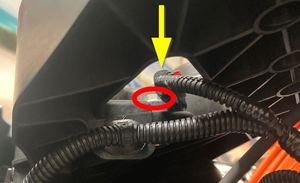

  2. Remove the bolt that attaches the LH acceleration sensor to the top of the LH headlight bracket.
    7 Nm (5.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

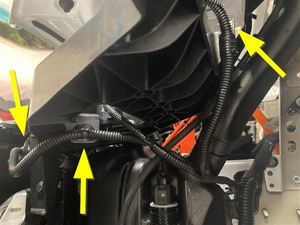

  3. Release the clips (x3) that attach the electrical harnesses to the LH headlight bracket.

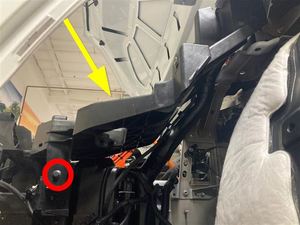

  4. Remove the bolt that attaches the LH headlight bracket, and then remove the bracket from the vehicle.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

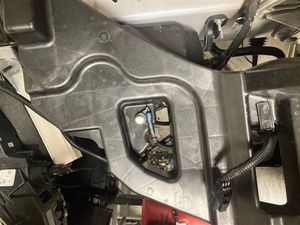

  1. Position the LH headlight bracket into the vehicle, and then install the bolt that attaches the bracket to the body.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  2. Install the clips (x3) that attach the electrical harnesses to the LH headlight bracket.

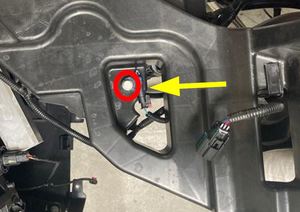

  3. Install the bolt that attaches the LH acceleration sensor to the top of the LH headlight bracket.
    7 Nm (5.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  4. Install the LH headlight. See Headlight - LH (Remove and Replace).
