Racetrack Trim - Rear - LH (Remove and Replace)

Correction code 15187502 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  5. Open the liftgate.
  6. Fold the LH 3rd row seat downward.

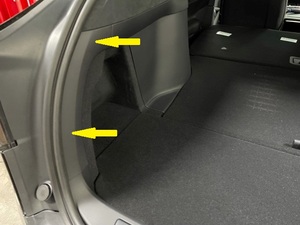

  7. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Plastic trim tool
  8. Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  9. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  10. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).

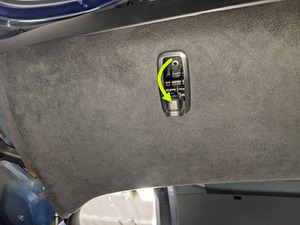

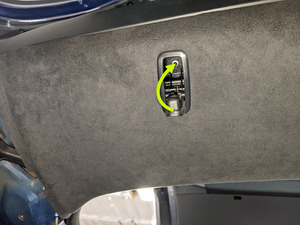

  11. Open the LH and RH side rear coat hooks.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press the coat hooks inward, and then release to open.

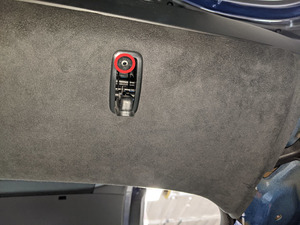

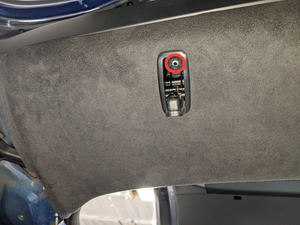

  12. Remove the screws (x2) that secure the LH and RH rear coat hooks to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket

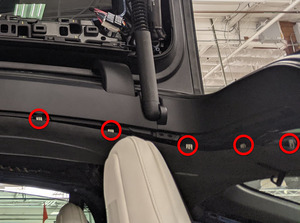

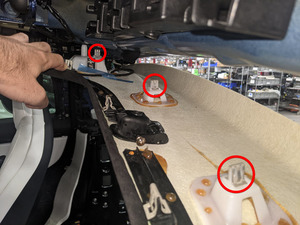

  13. Partially release the clips (x8) that attach the LH rear headliner to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool
  14. Remove the screw that secures the LH rear racetrack trim to the spine racetrack.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

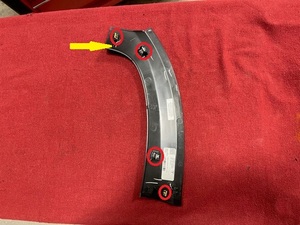

  15. Release the clips (x21) that attach the LH rear racetrack trim to the vehicle, and then remove the trim from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the clips from the bottom of the trim first, and then work towards the top.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Clip pry tool

Install

  1. Position the LH rear racetrack trim on the vehicle, and then install the clips (x21) that attach the trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install the clips at the top of the trim first, and then work towards the bottom.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that the top of the trim is engaged with the spine racetrack.
  2. Ensure that the falcon wing door seal is seated behind the LH rear racetrack trim.
  3. Install the screw that secures the LH rear racetrack trim to the spine racetrack.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
  4. Install the clips (x8) that attach the LH rear headliner to the vehicle.
  5. Install the screws (x2) that secure the LH and RH rear coat hooks to the vehicle.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • Torx T20 socket
  6. Close the LH and RH side rear coat hooks.
  7. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  8. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  9. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  10. Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
  11. Move the LH 3rd row seat to original position.
  12. Close the liftgate.
  13. Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  14. Close the LH and RH falcon wing doors.
  15. Raise the LH and RH front windows.
  16. Close the LH and RH front doors.
