Filter - HEPA (Remove and Replace)

Correction code 18105502 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-07-12: Reorganized the procedure.

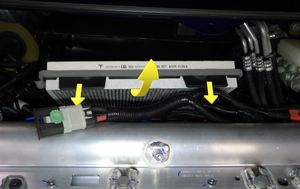

  1. Install the HEPA filter
  2. Fasten the clips (x2) that attaches the HEPA filter to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

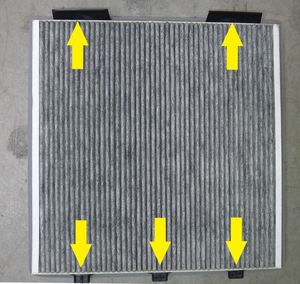

    Align the3 datums into the bottom of the HEPA filter.
  3. Install the HEPA filter cover. See Cover - Filter - HEPA (Remove and Replace).
