Filter - Cabin (Remove and Replace)

Correction code 18100102 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the RH front door and lower the RH front window.
  2. Move the RH front seat backward.

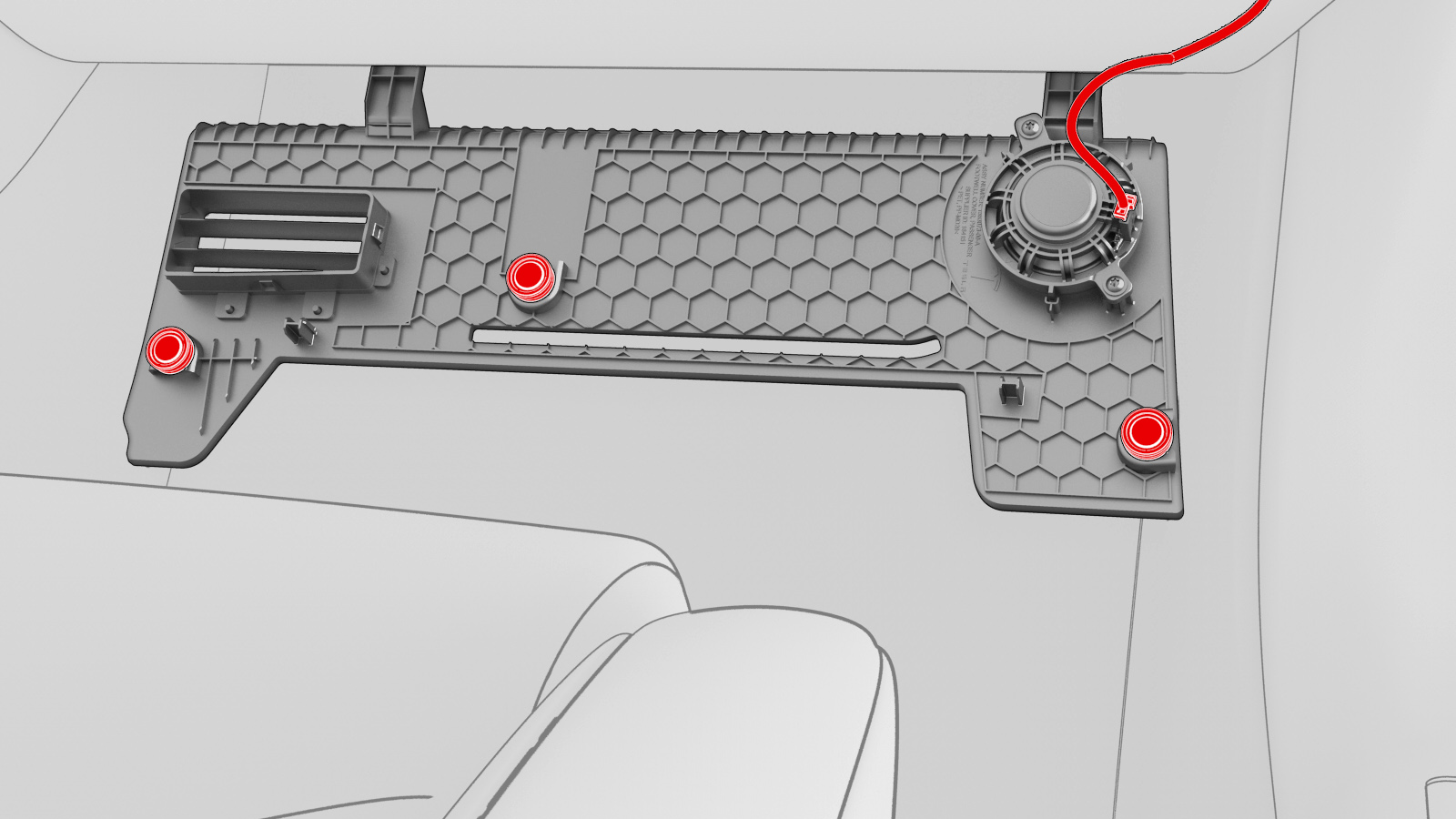

  3. Release the magnets that attach the RH footwell cover to the vehicle, and then disconnect the electrical harness from the cover.

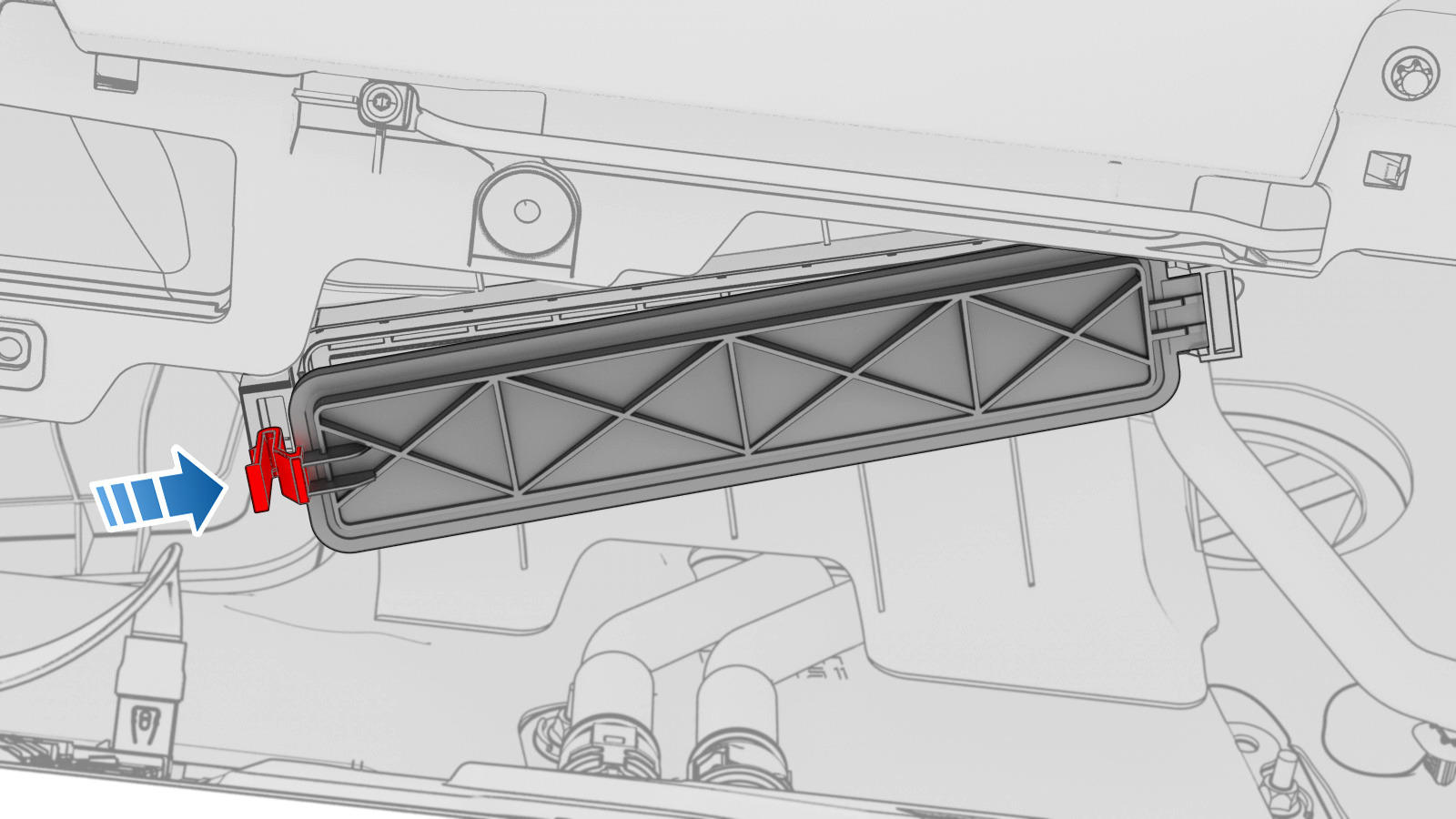

  4. Release the cabin filter door lock and then remove the door from the vehicle.

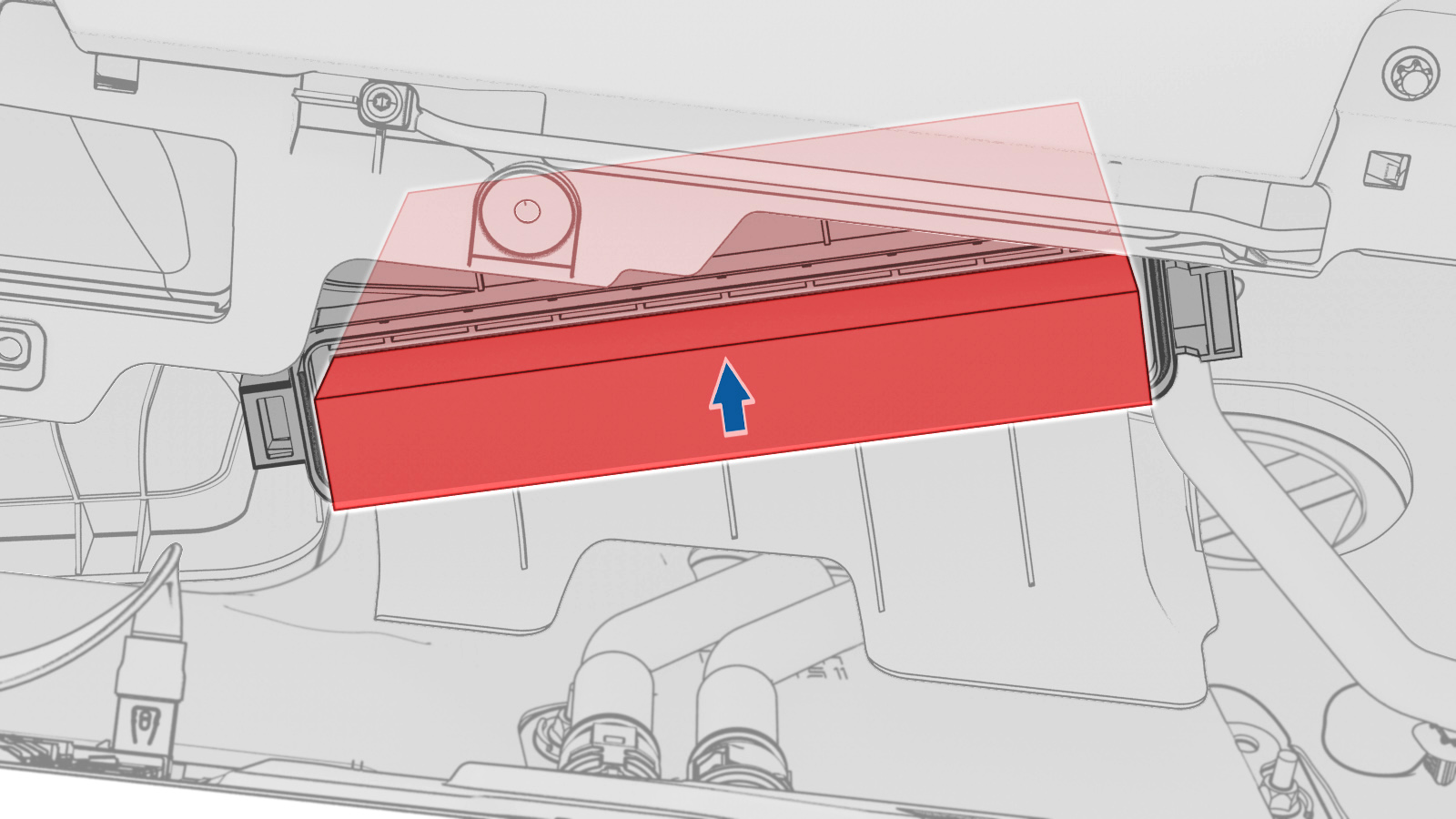

  5. Note the direction of air flow printed on the filter, and then remove the cabin filter.

Install

  1. Install the cabin filter, noting the correct direction of air flow.
  2. Position the cabin filter door on the vehicle, and then install the lock that attaches the door to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the lock fully engages and the door is sealed.
  3. Position the RH footwell cover on the vehicle, connect the electrical harness to the speaker, and then install the magnets that attach the cover to the vehicle.
  4. Move the RH front seat to the original position.
  5. Raise the RH front window and close the RH front door.
