Trim - Sill - Trunk (Remove and Replace)
Correction code
15244802
0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
- Remove the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
-

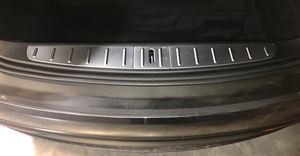

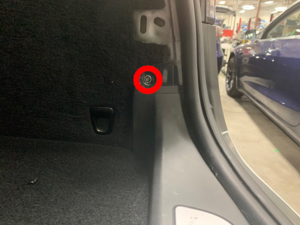

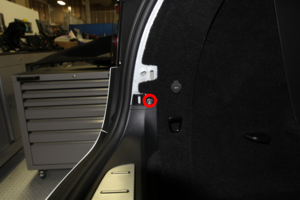

Remove and discard the bolts (x2), and
release the clips (x4), that attach the trunk sill trim to the body, and then remove the
trim from the vehicle.
TIpUse of the following tool(s) is recommended:
- T25 socket
Install
-
Install the trunk sill trim to the
body, and then fasten the clips (x4) and install new bolts (x2) to attach the trim to
the body.
2.5 Nm (1.8 lbs-ft)TIpUse of the following tool(s) is recommended:- T25 socket
- Install the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
- Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
