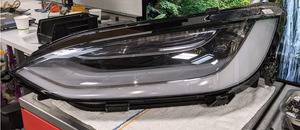

Headlight - LH (Remove and Replace)

Correction code 17400102 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

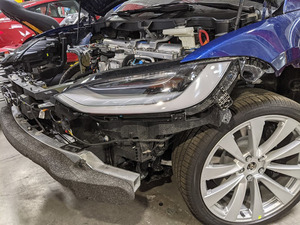

  1. Remove the front fascia assembly from the vehicle. See Fascia Assembly - Front (Remove and Install).

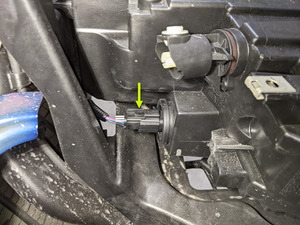

  2. Disconnect the LH headlight electrical connector.

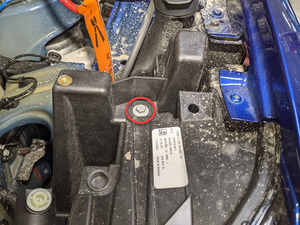

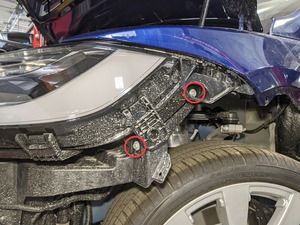

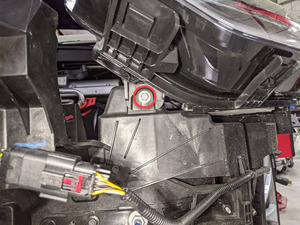

  3. Remove the bolts (x4) that attach the LH headlight to the vehicle.
    4.7 Nm (3.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  4. Remove the LH headlight from the vehicle.

Install

  1. Position the LH headlight onto the vehicle, and then slide headlight into the LH front fender.
  2. Install the bolts (x4) that attach the LH headlight to the vehicle.
    4.7 Nm (3.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  3. Connect the LH headlight electrical connector.
  4. Install the front fascia assembly onto the vehicle. See Fascia Assembly - Front (Remove and Install).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to install the underhood aprons in preparation for the following step.
  5. Adjust the headlights. See Headlights - Adjust - NA (Tool Method).
  6. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  7. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  8. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
