Seal - Liftgate - Margin (Remove and Replace)

Correction code 11702012 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the rear doors and liftgate.

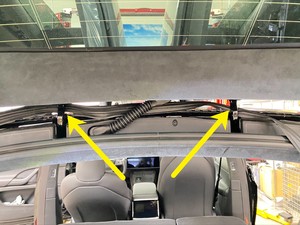

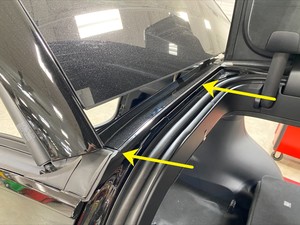

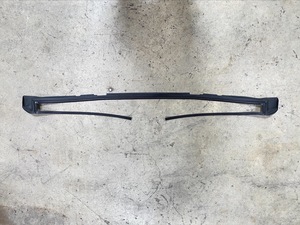

  3. Remove margin liftgate seal from rear roof applique assembly.

Install

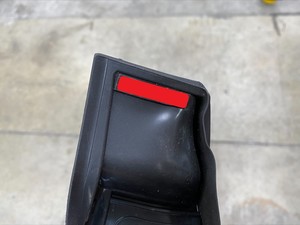

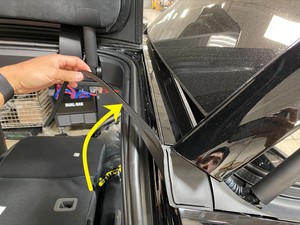

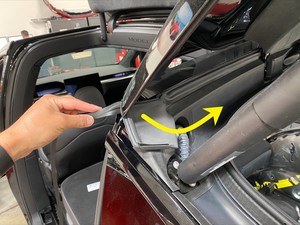

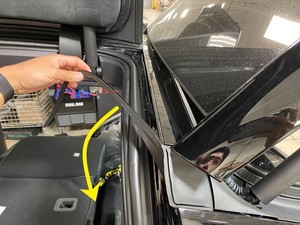

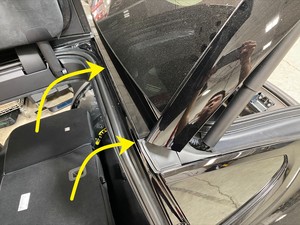

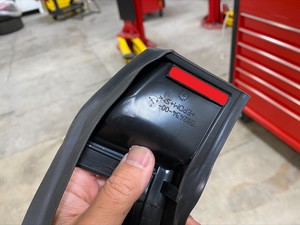

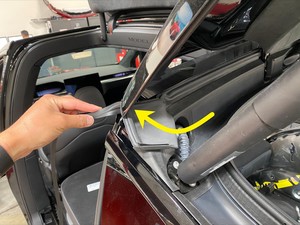

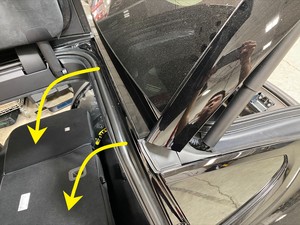

  1. Remove the adhesive backing from the margin liftgate seal, and then work around the liftgate hinges to position the seal onto the rear roof applique assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

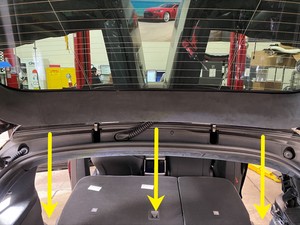

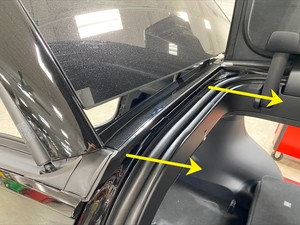

    Make sure the seal is fully secured onto the rear roof applique and is positioned under the center liftgate trough trim.
  2. Close the liftgate and rear doors.
  3. Raise the LH front window and close the LH front door.
