Striker - Door - Front - LH (Remove and Replace)

Correction code 11353002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the front windows.
  2. Use masking tape to mark the position of the LH front door striker on the body.

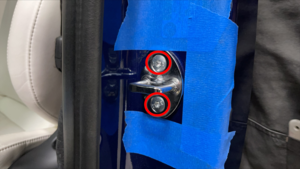

  3. Remove the bolts (x2) that attach the LH front door striker to the body, and then remove the striker from the vehicle.
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T40 socket

Install

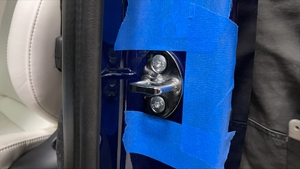

  1. Position the LH front door striker into the vehicle, and then install the bolts (x2) that attach the striker to the vehicle.
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T40 socket
  2. Close the LH front door and verify the door position.
  3. Open the LH front door.
  4. Adjust the LH front door striker position and verify fitment.
  5. Torque the bolts (x2) that attach the LH front door striker to body.
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T40 socket
  6. Remove the masking tape from the body.
  7. Raise the front windows and close the LH front door.
