Bumper Beam - Front (Remove and Replace)

Correction code 10011102 1.26 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
  2. Remove the front bumper beam foam. See Foam - Bumper Beam - Front (Remove and Replace).

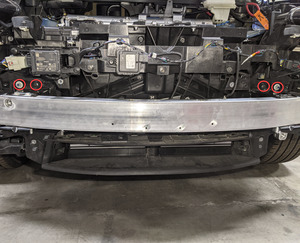

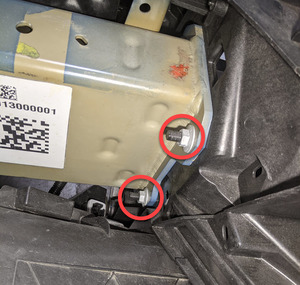

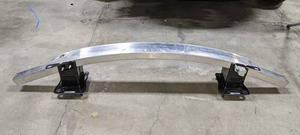

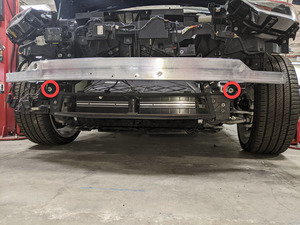

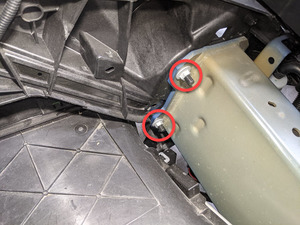

  3. With an assistant, remove the nuts (x8) and the bolts (x2) that attach the front bumper beam to the front end carrier, and then remove the beam from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Torque: 60 Nm nuts, 9 Nm bolts
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • 15 mm deep socket

Install

  1. With an assistant, install the nuts (x8) and the bolts (x2) that attach the front bumper beam to the body studs.
    Informational PurposesAn informational icon, calling your attention
    Note
    Torque: 60 Nm nuts, 9 Nm bolts
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • 15 mm deep socket
  2. Install the front bumper beam foam. See Foam - Bumper Beam - Front (Remove and Replace).
  3. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
