Cover - Inner - Podium - Driver (Remove and Replace)
Correction code
13010712
0.48
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the front windows.
- Remove the driver seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove and Install).
- Remove the driver podium outer cover. See Cover - Outer - Podium - Driver (Remove and Replace).
-

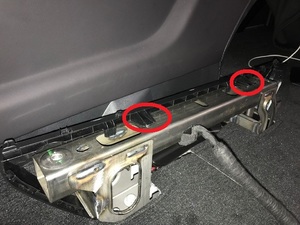

Release the clips that attach the
driver podium inner cover to the seat assembly, and then remove the cover from the
vehicle.
Install
-

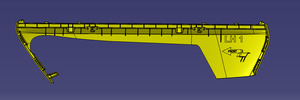

Position the driver podium inner cover into the seat assembly, and then secure the
clips (x2) that attach the cover to the seat assembly.
NoteRoute the seat harness through inner outboard cover.
- Install the driver podium outer cover. See Cover - Outer - Podium - Driver (Remove and Replace).
- Install the driver seat. See Seat Assembly - 1st Row - LH (Remove and Install).
- Raise the front windows and close the LH front door.
