Bracket - Trunk Load Floor - LH (Remove and Replace)

Correction code 15305202 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and move the front seats forward.
  2. Fold the 2nd row seats backs to the down position.
  3. Remove the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  4. Remove rear trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  5. Remove the LH trunk load floor bracket cover. See Cover - Bracket - Trunk Load Floor - LH (Remove and Replace).
  6. Remove the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace)
  7. Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  8. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  9. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  10. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).

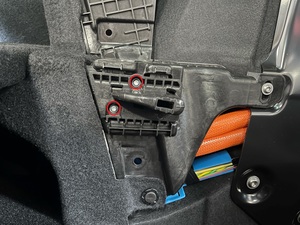

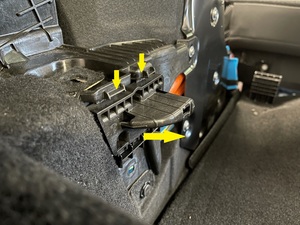

  11. Remove the screws (x2) and release the tabs (x2) that attach the LH trunk load floor bracket to the vehicle, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

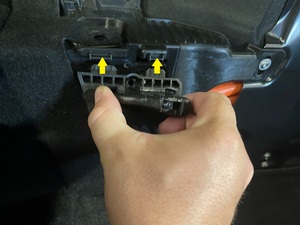

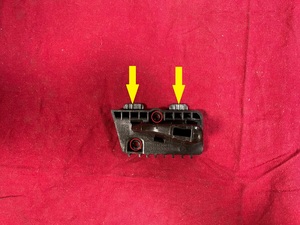

    Rotate the bottom out, and then pull down.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket

Install

  1. Position the LH trunk load floor bracket into the vehicle, and then install the screws (x2) and secure the tabs (x2) that attach the bracket to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  2. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  3. Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  4. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  5. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  6. Install the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  7. Install rear trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  8. Install the LH trunk load floor bracket cover. See Cover - Bracket - Trunk Load Floor - LH (Remove and Replace).
  9. Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  10. Move all the seats to the original position.
  11. Close all the doors.
