Applique - Roof - Front (Remove and Replace)

Correction code 12206002 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
For Europe only: Only technicians who have been trained in working with diisocyanates and have completed all required certification courses are permitted to perform procedures using urethane and other products containing diisocyanates. Proper personal protective equipment (PPE) must be worn when working with products containing diisocyanates.

Remove

  1. Open the LH falcon wing door.

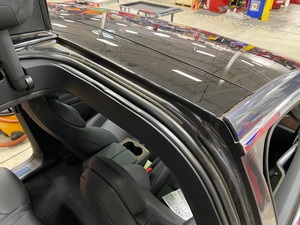

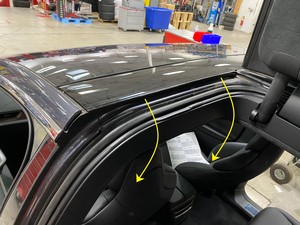

  2. Release the clips (x3) that attach the top of the LH B-pillar applique seal to the vehicle. Repeat this step for the RH B-pillar applique seal.
    Figure 1. LH shown; RH similar
    Figure 2. LH shown; RH similar

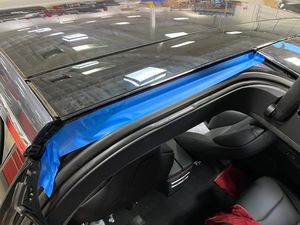

  3. Apply masking tape to the body to prevent damage.

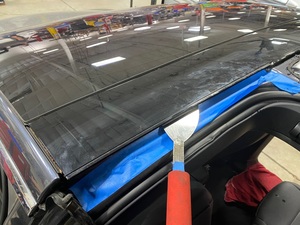

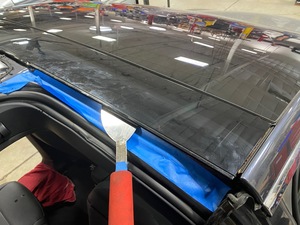

  4. Use a hydro blade to separate the urethane that attaches the front roof applique to the vehicle, release the clips (x5), and then remove applique from the vehicle.

Install

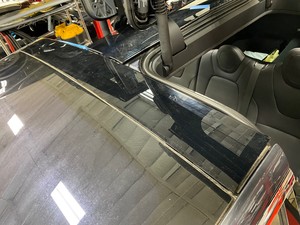

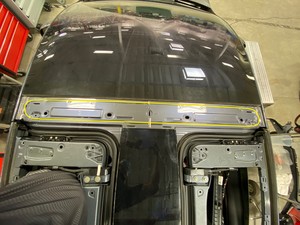

  1. Use IPA wipes to clean and remove excess urethane from the roof area.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute of dry time.
  2. Apply primer along the urethane path on the roof assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Check the primer packaging for the appropriate wait time before applying adhesive.
  3. Apply primer to the front roof applique assembly.
  4. Prepare the caulking gun and urethane.
    Informational PurposesAn informational icon, calling your attention
    Note

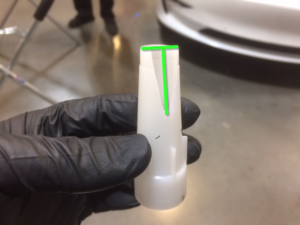

    The opening must be 8mm wide and 14mm tall.
  5. Apply urethane to the front roof applique following the primer patch.

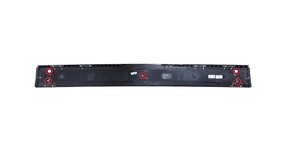

  6. Position the front roof applique onto the vehicle, and then firmly press the applique into the vehicle to engage the clips (x5) and urethane.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the gaps between the applique and the adjacent panels are even from front to back and from side to side. Clean off any excess urethane.

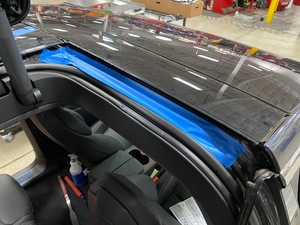

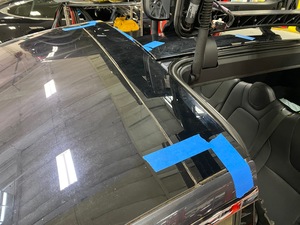

  7. Apply tape on the front roof applique assembly to temporarily hold it in place. Allow the urethane to dry as directed by the adhesive manufacturer.
  8. Remove the tape from the roof area.

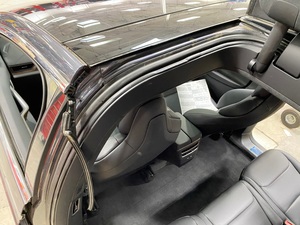

  9. Secure the clips (x3) that attach the LH B-pillar applique seal to the vehicle. Repeat this step for the RH B-pillar applique.
    Figure 3. LH shown; RH similar
