Trim - C-Pillar - Mid - LH (Remove and Replace)

Correction code 15185402 0.05 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).

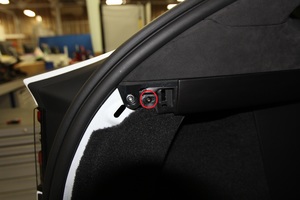

  2. Remove the screw that attaches the LH mid C-pillar trim to the LH C-pillar zone bracket.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

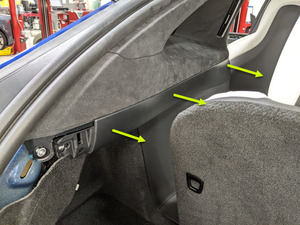

  3. Release the clips (x9) that attach the LH mid C-pillar trim to the LH mid C-pillar zone bracket, and then remove the mid C-pillar trim from the vehicle.

Install

  1. Install the LH mid C-pillar trim to the LH mid C-pillar zone bracket, and then fasten the clips (x9) that attach the mid C-pillar trim to the C-pillar zone bracket.
  2. Install the screw that attaches the LH mid C-pillar trim to the LH C-pillar zone bracket.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Install the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
