Module - Bluetooth Low Energy (BLE) - Rear (Remove and Replace)

Correction code 17451802 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear fascia assembly from the vehicle. See Fascia Assembly - Rear (Remove and Install).
  2. Release the connector lock, and then disconnect the LH rear BLE module electrical connector.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
  3. Remove the screws (x2) and release the tab that attach the LH rear BLE module to the upper rear fascia assembly, and then remove the module from the fascia.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket

Install

  1. Position the LH rear BLE module into the upper rear fascia assembly, and then install the screws (x2) and secure the tab that attach the module to the fascia.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  2. Connect the LH rear BLE module electrical connector, and then engage the locking tab.

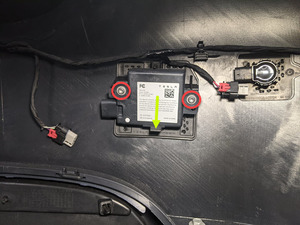

    Figure 1. LH shown; RH similar
  3. Install the rear fascia assembly. See Fascia Assembly - Rear (Remove and Install).
  4. Connect a laptop with Toolbox 3 to the vehicle.
  5. Click the Actions tab, and then search for "Service-Redeploy".
  6. Click SERVICE CAN REDEPLOY, and then click Run and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    Select "X" at top right of window to close once complete. The routine will state pass but update will continue to run in the background. The UI will show update progress.
  7. In Toolbox, click TEST-SELF_VCSEC_X_ENDPOINT-COMMvia Toolbox: (link), and then click Run Network and allow the routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Click the X at top right of window to close once complete.
  8. Disconnect Toolbox 3 and remove the laptop from the vehicle.
