Module - Front Door Controller - LH (Remove and Replace)

Correction code 11332402 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Disconnect LV power. See LV Power (Disconnect and Connect).
  3. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  4. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).

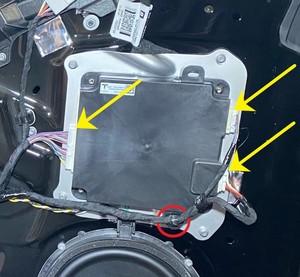

  5. Disconnect the electrical connectors (x3), and then release the clip that attaches the harness to the LH front door controller module.

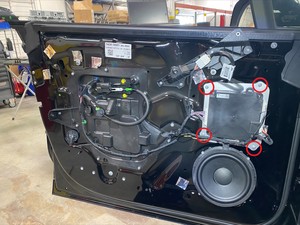

  6. Remove the bolts (x4) that attach the LH front door controller module to the LH front door assembly, and then remove the module from the assembly.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket

Install

  1. Position the LH front door controller module onto the LH front door assembly, and then install the bolts (x4) that attach the module to the assembly.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket
  2. Connect the electrical connectors (x3), and then secure the clip that attaches the harness to the LH front door controller module.
  3. Connect LV power. See LV Power (Disconnect and Connect).
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  5. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
  6. Release the IP service panel.
  7. Connect a laptop with Toolbox 3 to the vehicle.
  8. In Toolbox, click the Actions tab, and then search for "Service-Redeploy".
  9. Click SERVICE CAN REDEPLOY, and then click Run and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    The routine will state pass but the update will continue to run in the background. The UI will show update progress.
    Informational PurposesAn informational icon, calling your attention
    Note
    Click the "X" at the top right of window to close once complete.
  10. Reconnect Toolbox 3 to the vehicle.
  11. In toolbox, click the Actions tab, and then search for "BCFDM".
  12. Click Update_BCFDM, and then click Run and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    Click the "X" at the top right of window to close once complete.
  13. Disconnect Toolbox 3 and remove the laptop from the vehicle.
  14. Install the IP service panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the panel forward engaging the datums, and then secure the tabs upward into the IP.
  15. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
