Bracket - Rear Door Trim - Upper - Front - LH (Remove and Replace)

Correction code 15134402 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH falcon wing door.
  2. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  3. Remove the LH upper rear door trim panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace).

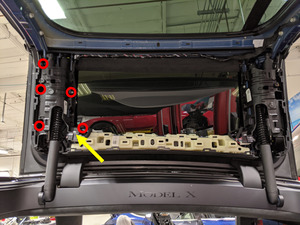

  4. Remove the bolts (x5) that attach the LH front upper rear door trim bracket to the LH rear door, release the harness clip, and then remove the bracket from the door.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket

Install

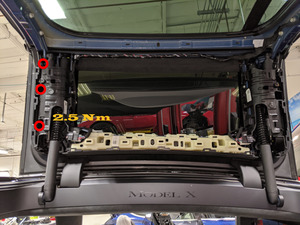

  1. Position the LH front upper rear door trim bracket on the LH rear door, secure the harness clip, and then install the outer bolts (x3) that attach the bracket to the door.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket
  2. Install the inner bolts (x2) that attach the LH front upper rear door trim bracket to the LH rear door.
    4 Nm (2.9 lbs-ft)
  3. Install the LH upper rear door trim panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace).
  4. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  5. Close the LH falcon wing door.
