Grille - Speaker - Liftgate (Remove and Replace)

Correction code 15112002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.
  3. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).

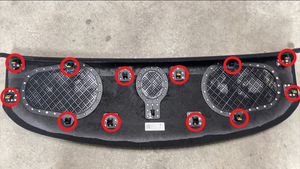

  4. Release the clips (x10) that attach the liftgate speaker grille to the liftgate, and then remove the grille from the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Take note of any damaged clips.

Install

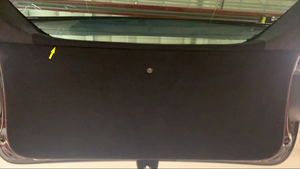

  1. Position the liftgate speaker grille onto the liftgate, and then secure the clips (x10) that attach the grille to the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any damaged clips.
  2. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
  3. Close the liftgate.
  4. Raise the LH front window and close the LH front door.
