Antenna Amplifier - FM (Remove and Replace)

Correction code 21300702 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
  2. Remove the liftgate speaker trim. See Grille - Speaker - Liftgate (Remove and Replace).
  3. Remove the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace)

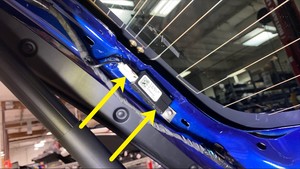

  4. Disconnect the electrical connectors (x2) from the FM antenna amplifier.

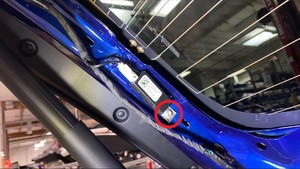

  5. Remove the bolt that attaches the FM antenna amplifier to the liftgate.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  6. Carefully pry the FM antenna amplifier away from the liftgate to release the retainer, and then remove the amplifier from the liftgate.

Install

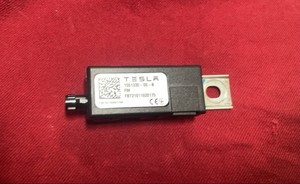

  1. Position the FM antenna amplifier into the liftgate, and then secure the retainer that attaches the amplifier to the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press the amplifier into the liftgate to seat the retainer.
    Informational PurposesAn informational icon, calling your attention
    Note

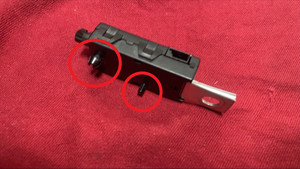

    Make sure the datum is aligned and the retainer clips is secure.
  2. Install the bolt that attaches the FM antenna amplifier to the liftgate.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  3. Connect the electrical connectors (x2) to the FM antenna amplifier.
  4. Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace)
  5. Install the liftgate speaker trim. See Grille - Speaker - Liftgate (Remove and Replace).
  6. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
